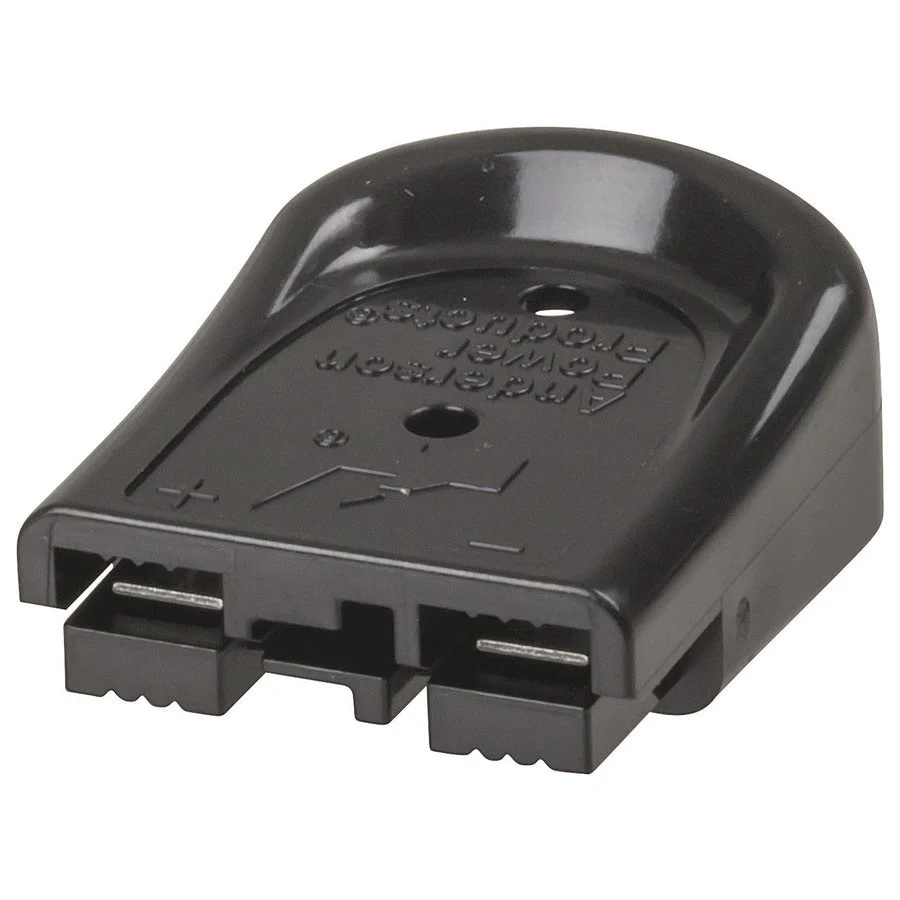

Anderson 35A SBS Mini Connector - Black
Compact and ergonomic, these high-current connectors protect against accidental contact with dangerous DC circuits. Inline and wire-to-wire configurations allow for one connector to meet multiple needs. The mini connector features touch-safe polycarbonate housing and two finger proof positions. Contact pins fitted in Australia to ensure the highest quality connection. Available in black, red and grey.
Features:
• Anderson’s smallest SBS connector
• Touch-safe housing
• Contact Rating: 10AWG 35A
• Contact Wire Size: 0.75 to 4.0mm²
• Max Wire Outer Diameter: 4.65mm
• Contact Retention Force: 9kg (20lbs) minimum
| Length | 30mm |
| Width | 23mm |
| Height | 10mm |
| Pack Quantity | 1pc |
| Device | Plug |
| Plug or Socket Type | Anderson 35A 2 Pole |
| Contacts / Pins | 2pc |
| Case Material | ABS Plastic (Acrylonitrile Butadiene Styrene) |
| Attachment Method | Crimp |
| Colour Coded | Black |
| Contact Material | Plated Metal |
| Locking Function | Locking Screw |
| Cable Entry Diameter | 4.65mm |
| Attachment / Securing Method | Integrated Clips |
| Mounting Method | Line |
| AC Voltage rating | 600V |
| DC Voltage | 600V |
| DC current rating | 35A |
| Operating Temperature | -20°C-105°C |
Downloads
