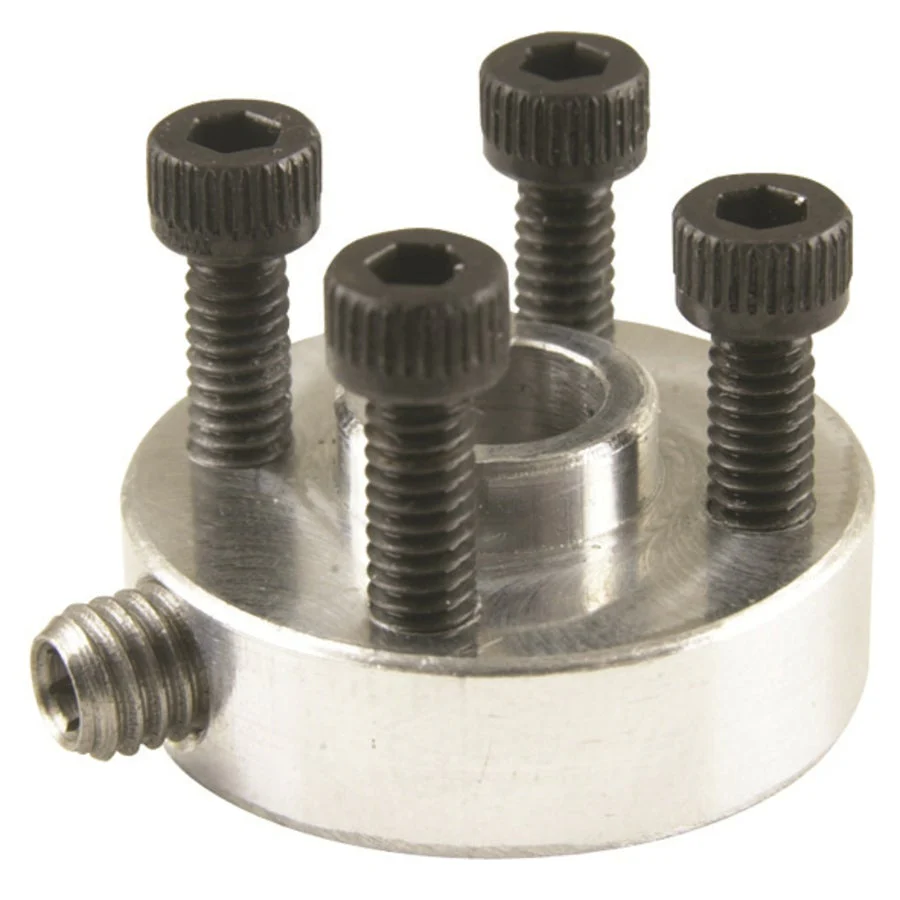

Aluminium Hub with Set Screws
Aluminium Hub with Set Screws
This device will accept a 6.35mm (1/4”) shaft set screw fixed and connect to the flat face of a gear, typically the flat side of the larger 48 pitch gears shown above.
Features:
- Coupling from the gear to the hub is via 4 x set screws provided. This enables a motor to be securely fastened to a driving gear.
- Hub 7/8” (22.5mm) dia.
This device will accept a 6.35mm (1/4”) shaft set screw fixed and connect to the flat face of a gear, typically the flat side of the larger 48 pitch gears shown above.
Features:
- Coupling from the gear to the hub is via 4 x set screws provided. This enables a motor to be securely fastened to a driving gear.
- Hub 7/8” (22.5mm) dia.
Specifications:
| Diameter | 22.5mm |
| Diameter | 6.35mm |
| Dimensions details | Shaft Allowance |
