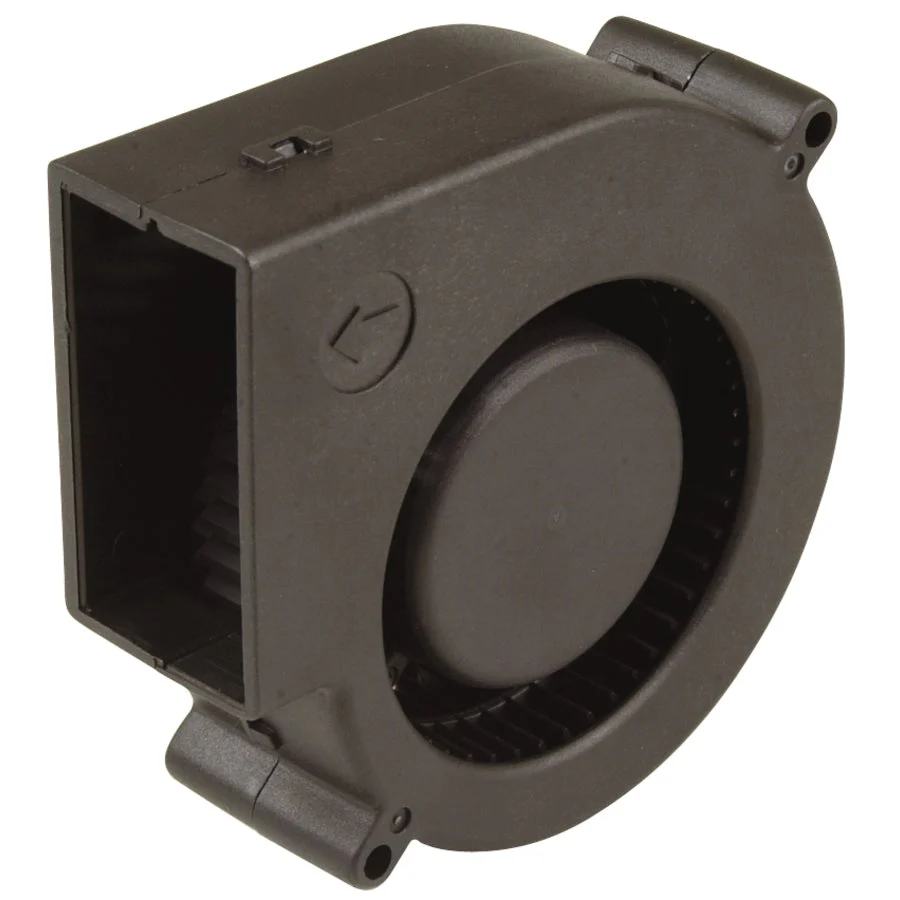

97mm x 94mm 12V DC Blower Fan Ball Bearing - 2 wire
Features:
Input: 10.32 Watts
Impeller: Plastic, fibreglass filled
Housing: Plastic, fibreglass filled
Static pressure: 1.00 (Inch - H2O)
Specifications:
| fan RPM | 3600RPM |
| fan air colume cubic feet | 26ft³/min |
| fan noise | 51dB |
| type of fan | Blower |
| fan air volume cubic metres | 0.74m³/min |
| fan bearing type | Ball |
| fan housing material | Plastic |
| fan impeller material | Plastic |
| Fan Operational Life at 25°C | 100000hr |
| fan number of wires | 2pc |
| fan connector type | Flyleads |
| Item Connection | Flyleads |
| DC Plugpack Voltage | 12V |
| DC Current Draw | 860mA |
| Length | 97mm |
| Width | 33mm |
| Height | 94mm |
Downloads
- Download Datasheet
Features:
Input: 10.32 Watts
Impeller: Plastic, fibreglass filled
Housing: Plastic, fibreglass filled
Static pressure: 1.00 (Inch - H2O)
Specifications:
| fan RPM | 3600RPM |
| fan air colume cubic feet | 26ft³/min |
| fan noise | 51dB |
| type of fan | Blower |
| fan air volume cubic metres | 0.74m³/min |
| fan bearing type | Ball |
| fan housing material | Plastic |
| fan impeller material | Plastic |
| Fan Operational Life at 25°C | 100000hr |
| fan number of wires | 2pc |
| fan connector type | Flyleads |
| Item Connection | Flyleads |
| DC Plugpack Voltage | 12V |
| DC Current Draw | 860mA |
| Length | 97mm |
| Width | 33mm |
| Height | 94mm |
Downloads
- Download Datasheet
$27.61
97mm x 94mm 12V DC Blower Fan Ball Bearing - 2 wire—
$27.61
