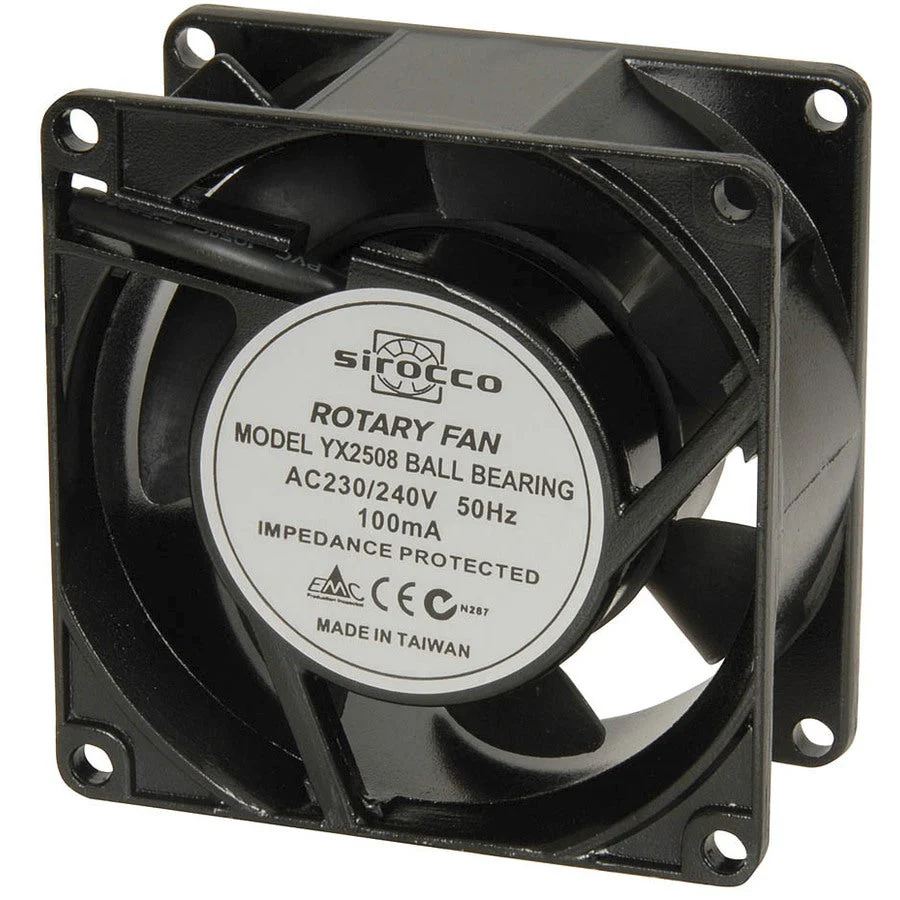

80mm 240V Ball Bearing Fan
Features:
- Input 12 watts
- Voltage 240 volts AC
- Impeller Plastic, fibreglass filled
- Housing Die cast aluminium, powdercoated black.
Specifications:
| fan RPM | 2800RPM |
| fan air colume cubic feet | 30ft³/min |
| fan noise | 32dB |
| type of fan | Axial |
| fan air volume cubic metres | 0.88m³/min |
| fan bearing type | Ball |
| fan housing material | Plastic |
| fan impeller material | Plastic |
| Fan Operational Life at 25°C | 100000hr |
| fan number of wires | 2pc |
| fan connector type | Flyleads |
| Tachometer Output | No |
| Mains Voltage Range | 240V |
| Mains Max Current | 100mA |
| Max Input Power | 24W |
| Rated for AU Mains | Yes |
| Frequency | 50Hz |
| Rated for US Mains | No |
| Auto-select mains voltage | No |
| Mounting Method | Through Hole |
| Length | 80mm |
| Width | 80mm |
| Depth | 38mm |
Downloads
- Download Datasheet
Features:
- Input 12 watts
- Voltage 240 volts AC
- Impeller Plastic, fibreglass filled
- Housing Die cast aluminium, powdercoated black.
Specifications:
| fan RPM | 2800RPM |
| fan air colume cubic feet | 30ft³/min |
| fan noise | 32dB |
| type of fan | Axial |
| fan air volume cubic metres | 0.88m³/min |
| fan bearing type | Ball |
| fan housing material | Plastic |
| fan impeller material | Plastic |
| Fan Operational Life at 25°C | 100000hr |
| fan number of wires | 2pc |
| fan connector type | Flyleads |
| Tachometer Output | No |
| Mains Voltage Range | 240V |
| Mains Max Current | 100mA |
| Max Input Power | 24W |
| Rated for AU Mains | Yes |
| Frequency | 50Hz |
| Rated for US Mains | No |
| Auto-select mains voltage | No |
| Mounting Method | Through Hole |
| Length | 80mm |
| Width | 80mm |
| Depth | 38mm |
Downloads
- Download Datasheet
$27.61
80mm 240V Ball Bearing Fan—
$27.61
Description
Features:
- Input 12 watts
- Voltage 240 volts AC
- Impeller Plastic, fibreglass filled
- Housing Die cast aluminium, powdercoated black.
Specifications:
| fan RPM | 2800RPM |
| fan air colume cubic feet | 30ft³/min |
| fan noise | 32dB |
| type of fan | Axial |
| fan air volume cubic metres | 0.88m³/min |
| fan bearing type | Ball |
| fan housing material | Plastic |
| fan impeller material | Plastic |
| Fan Operational Life at 25°C | 100000hr |
| fan number of wires | 2pc |
| fan connector type | Flyleads |
| Tachometer Output | No |
| Mains Voltage Range | 240V |
| Mains Max Current | 100mA |
| Max Input Power | 24W |
| Rated for AU Mains | Yes |
| Frequency | 50Hz |
| Rated for US Mains | No |
| Auto-select mains voltage | No |
| Mounting Method | Through Hole |
| Length | 80mm |
| Width | 80mm |
| Depth | 38mm |
Downloads
- Download Datasheet
