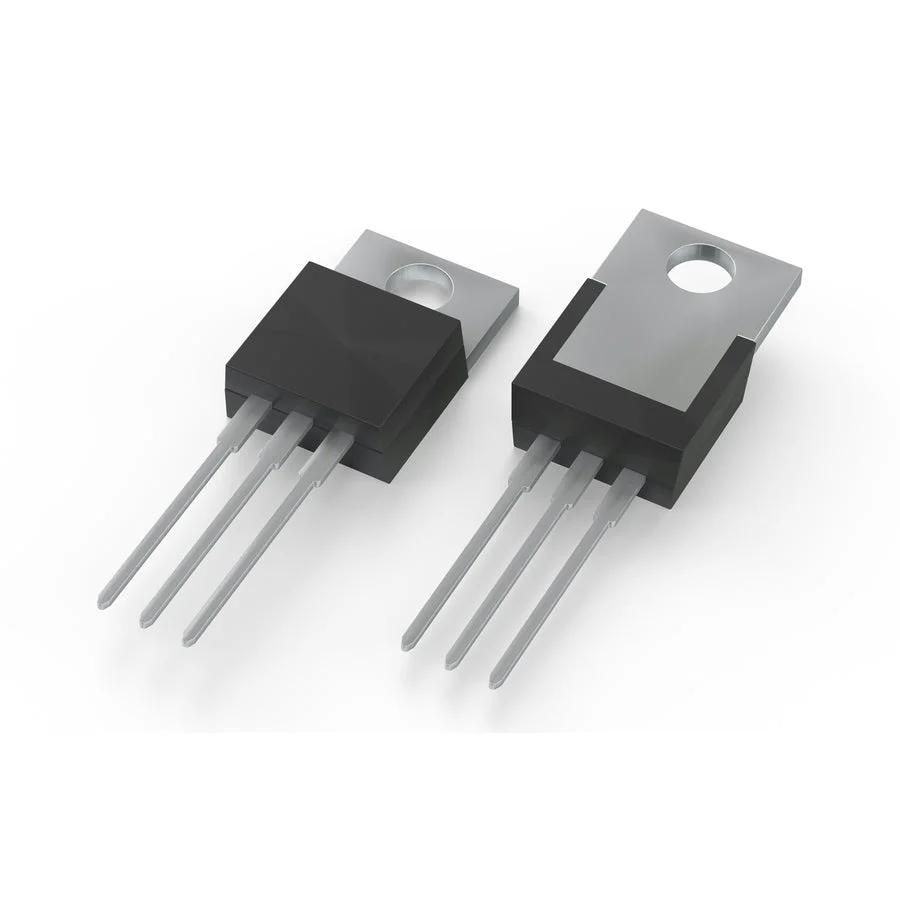

7909 -9V 1A Voltage Regulator TO-220
A voltage regulator is an electronic circuit that provides a stable DC voltage independent of the load current, temperature and AC line voltage variations. A voltage regulator may use a simple feed-forward design or may include negative feedback.
TYPE: 7909/LM320T9
VOUT: -9V
IOUT: 1A
CASE: TO-220
| Regulator package | TO-220 |
| Regulator polarity | Negative |
| Regulator maximum current | 1A |
| Regulator output voltage | 9V |
| Regulator input voltage | 11.5V |
| Voltage drop | 2.5V min |
| active case colour | black |
| active mount type | Through Hole |
| active marking code type | Printed |
| active connector type | Solder Legs |
| component package | square pack |
| max temperature | 125°C |
| active number of legs | 3 count |
