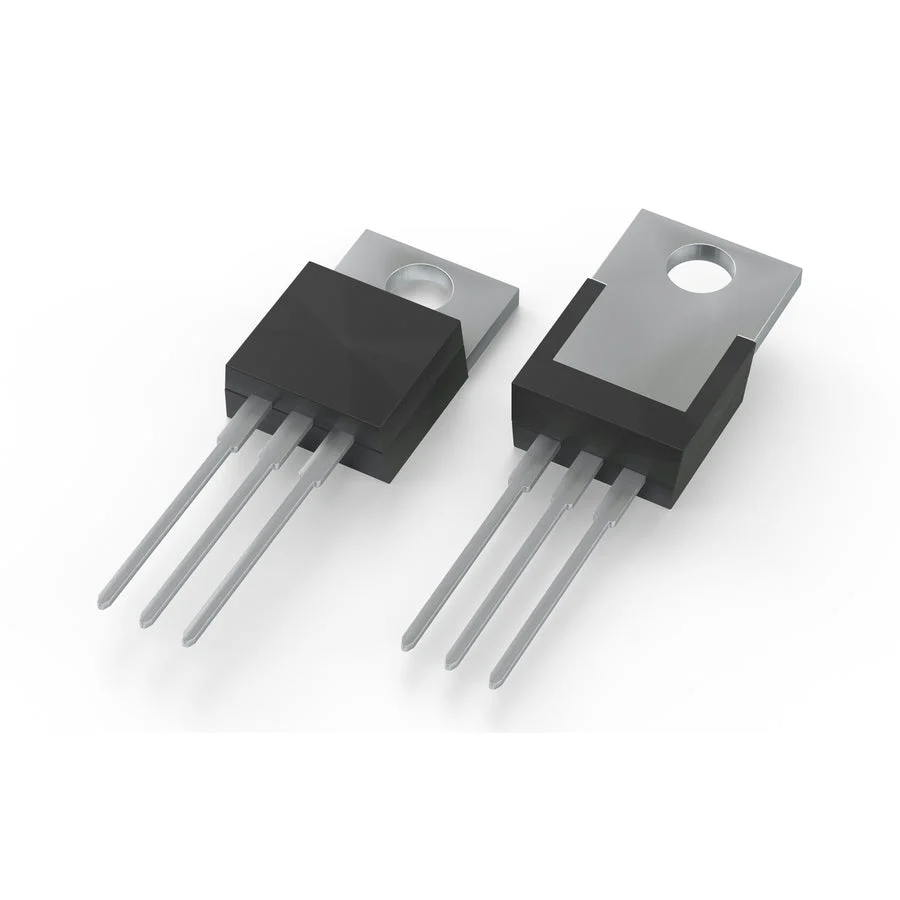

7806 +6V 1A Voltage Regulator
A voltage regulator is an electronic circuit that provides a stable DC voltage independent of the load current, temperature and AC line voltage variations. A voltage regulator may use a simple feed-forward design or may include negative feedback.
TYPE: 7806/LM340T6
VOUT: +6V
IOUT: 1A
CASE: TO-220
| Regulator package | TO-220 |
| Regulator polarity | Positive |
| Regulator maximum current | 1A |
| Regulator output voltage | 6V |
| Regulator input voltage | 8.5V |
| Regulator type | positive |
| Voltage drop | at least 2.5V |
| active mount type | Through Hole |
| active connector type | Solder Legs |
| component package | square pack |
| active number of legs | 3 count |
| active case colour | black |
| active marking code type | Printed |
| max temperature | 70°C |
Downloads
- Download Datasheet
