70A Solar (PV) Power Cable - Sold per metre
Very tough cable, specifically for the rigours of outdoor use in solar panel installations. Dust, age and UV resistant, tinned copper conductors to minimise corrosion. Use with our PV connectors for complete environmental protection.
Features:
• Insulation material: Double Layer XLPE
• TUV certification: 2 PfG 1169
• Commonly referred to as 6mm solar cable
Features:
• Insulation material: Double Layer XLPE
• TUV certification: 2 PfG 1169
• Commonly referred to as 6mm solar cable
Specifications
Wire and Cable

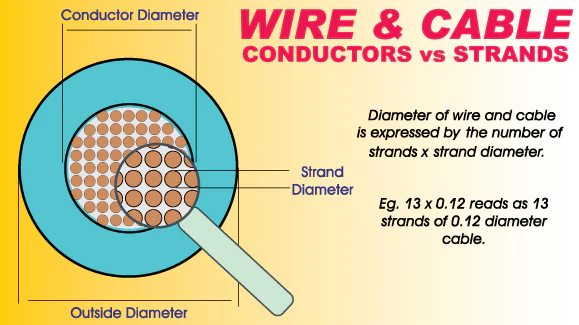

| Outer Diameter | 7.1mm |
| Conductor Overall Diameter | 3.2mm |
| Number of Conductor Strands | 81pc |
| Individual Conductor Strand Diameter | 0.3mm |
| Core Material | Tin Plated Copper |
| UV Resistant Cable | |
| Resistance per Linear Metre | 3.52mΩ |
| Cross Sectional Area | 5.7mm² |
| Wire Category | Solar system cable |
| Retail Sales Unit | Metre |
| Roll Length | 100m |
Product colour
| Alternates available | |
| Colour | Black |
DC Voltage Rating
| DC Voltage | 1000V |
DC Current Rating
| DC current rating | 70A |
Operating Temperature
| Operating Temperature | -40°C-90°C |
Very tough cable, specifically for the rigours of outdoor use in solar panel installations. Dust, age and UV resistant, tinned copper conductors to minimise corrosion. Use with our PV connectors for complete environmental protection.
Features:
• Insulation material: Double Layer XLPE
• TUV certification: 2 PfG 1169
• Commonly referred to as 6mm solar cable
Features:
• Insulation material: Double Layer XLPE
• TUV certification: 2 PfG 1169
• Commonly referred to as 6mm solar cable
Specifications
Wire and Cable
| Outer Diameter | 7.1mm |
| Conductor Overall Diameter | 3.2mm |
| Number of Conductor Strands | 81pc |
| Individual Conductor Strand Diameter | 0.3mm |
| Core Material | Tin Plated Copper |
| UV Resistant Cable | |
| Resistance per Linear Metre | 3.52mΩ |
| Cross Sectional Area | 5.7mm² |
| Wire Category | Solar system cable |
| Retail Sales Unit | Metre |
| Roll Length | 100m |
Product colour
| Alternates available | |
| Colour | Black |
DC Voltage Rating
| DC Voltage | 1000V |
DC Current Rating
| DC current rating | 70A |
Operating Temperature
| Operating Temperature | -40°C-90°C |
