70°C Thermal Circuit Breaker/Switch

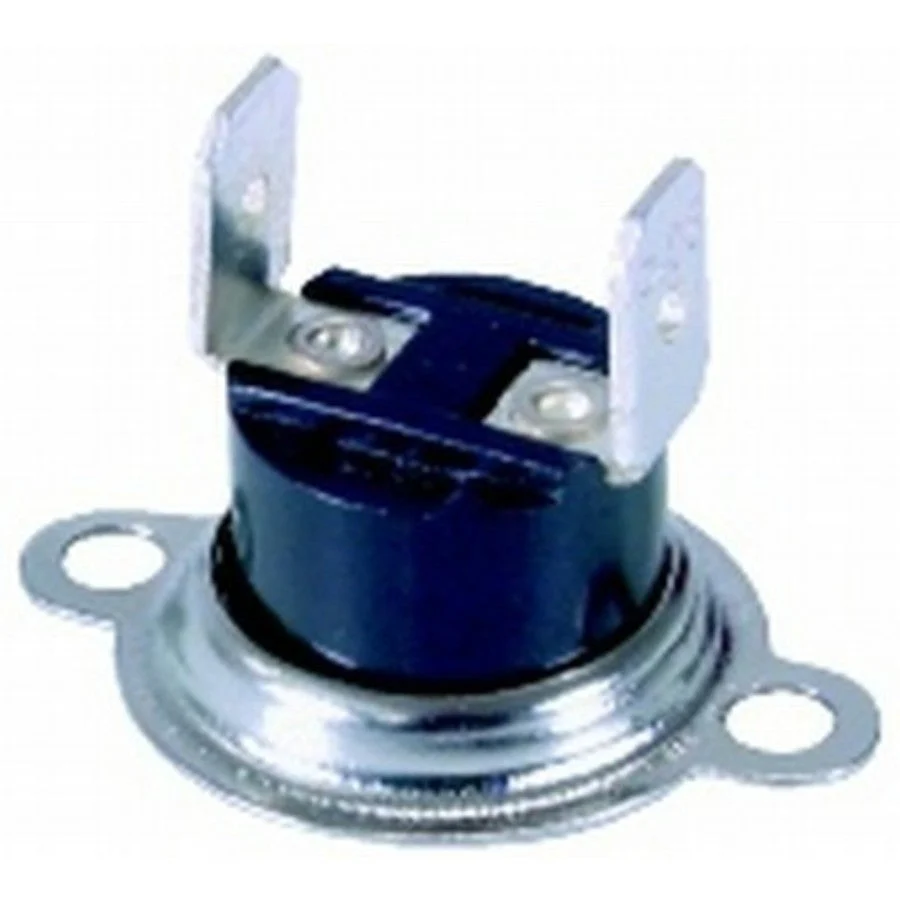

This phenolic-housed unit attaches to any metal surface which needs to be heat monitored. When the surace meets or exceeds a certain temperature the SPST bi-metalic element goes open circuit.
Specifications:
| Height | 21.2mm |
| Diameter | 30.3mm |
| Type of thermal switch or fuse | Thermal circuit breaker |
| Thermal reset method | Automatic |
| Thermal trip temperature | 70°C |
| Thermal reset temp | 58°C |
| Normally open or normally closed | Normally closed |
| operating tolerance | +/- 5°C (32VDC), +/- 8°C (125VAC), +/-10°C (250VAC) |
| reset differential | 10°C - 50°C |
| contact endurance | 32VDC-100mA, 125VAC-10A, 250VAC-6A |
| operation cycles | 50000, 100000, 30000 |
This phenolic-housed unit attaches to any metal surface which needs to be heat monitored. When the surace meets or exceeds a certain temperature the SPST bi-metalic element goes open circuit.
Specifications:
| Height | 21.2mm |
| Diameter | 30.3mm |
| Type of thermal switch or fuse | Thermal circuit breaker |
| Thermal reset method | Automatic |
| Thermal trip temperature | 70°C |
| Thermal reset temp | 58°C |
| Normally open or normally closed | Normally closed |
| operating tolerance | +/- 5°C (32VDC), +/- 8°C (125VAC), +/-10°C (250VAC) |
| reset differential | 10°C - 50°C |
| contact endurance | 32VDC-100mA, 125VAC-10A, 250VAC-6A |
| operation cycles | 50000, 100000, 30000 |
$1.55
Original: $4.44
-65%70°C Thermal Circuit Breaker/Switch—
$4.44
$1.55Description
This phenolic-housed unit attaches to any metal surface which needs to be heat monitored. When the surace meets or exceeds a certain temperature the SPST bi-metalic element goes open circuit.
Specifications:
| Height | 21.2mm |
| Diameter | 30.3mm |
| Type of thermal switch or fuse | Thermal circuit breaker |
| Thermal reset method | Automatic |
| Thermal trip temperature | 70°C |
| Thermal reset temp | 58°C |
| Normally open or normally closed | Normally closed |
| operating tolerance | +/- 5°C (32VDC), +/- 8°C (125VAC), +/-10°C (250VAC) |
| reset differential | 10°C - 50°C |
| contact endurance | 32VDC-100mA, 125VAC-10A, 250VAC-6A |
| operation cycles | 50000, 100000, 30000 |
