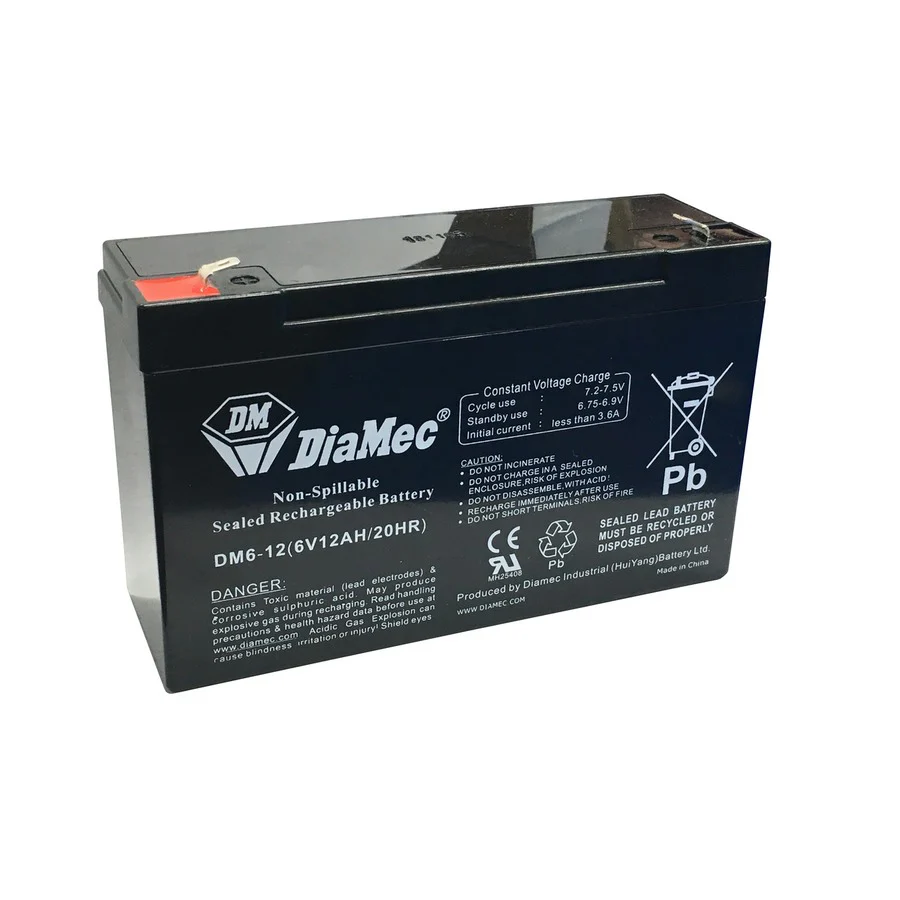

6V 12Ah SLA Battery SB2497
Features:
- Charge current 1.2A for 10- 14 hours
- Discharge current 20 hr rate 600mA
- Max Discharge Current (5 sec):40A
- Constant Voltage Charge: Initial charging current < 3.6A
Cycle:
- Voltage 7.20V~7.50V @ 20°C (68°F)
- Temp Coefficient: - 15mV/°C Standby:- Voltage 6.75V~6.90V @ 20°C (68°F)
- Temp Coefficient: - 10mV/°C
For More info on Charging Batteries.
| Recharging Voltage | 7.2V-7.5V |
| Standard Recharge Current | 1.2A |
| Recharging Time | 12hr |
| DC Voltage | 6V |
| Length | 151mm |
| Height | 100mm |
| Depth | 51mm |
| Battery Chemical Composition | Sealed Lead Acid (SLA) |
| Battery usage | Rechargeable |
| Battery Peak Current | 180A |
| Amp Hour Rating | 12Ah |
| 20 Hour Capacity | 12Ah |
| 10 Hour Capacity | 10.8Ah |
| 5 Hour Capacity | 9.6Ah |
| 1 Hour Capacity | 7.2Ah |
| Connection Type | Spade Terminals |
| Type of battery | SLA Block |
| Internal Resistance | 10Ω |
Downloads
Features:
- Charge current 1.2A for 10- 14 hours
- Discharge current 20 hr rate 600mA
- Max Discharge Current (5 sec):40A
- Constant Voltage Charge: Initial charging current < 3.6A
Cycle:
- Voltage 7.20V~7.50V @ 20°C (68°F)
- Temp Coefficient: - 15mV/°C Standby:- Voltage 6.75V~6.90V @ 20°C (68°F)
- Temp Coefficient: - 10mV/°C
For More info on Charging Batteries.
| Recharging Voltage | 7.2V-7.5V |
| Standard Recharge Current | 1.2A |
| Recharging Time | 12hr |
| DC Voltage | 6V |
| Length | 151mm |
| Height | 100mm |
| Depth | 51mm |
| Battery Chemical Composition | Sealed Lead Acid (SLA) |
| Battery usage | Rechargeable |
| Battery Peak Current | 180A |
| Amp Hour Rating | 12Ah |
| 20 Hour Capacity | 12Ah |
| 10 Hour Capacity | 10.8Ah |
| 5 Hour Capacity | 9.6Ah |
| 1 Hour Capacity | 7.2Ah |
| Connection Type | Spade Terminals |
| Type of battery | SLA Block |
| Internal Resistance | 10Ω |
Downloads
Description
Features:
- Charge current 1.2A for 10- 14 hours
- Discharge current 20 hr rate 600mA
- Max Discharge Current (5 sec):40A
- Constant Voltage Charge: Initial charging current < 3.6A
Cycle:
- Voltage 7.20V~7.50V @ 20°C (68°F)
- Temp Coefficient: - 15mV/°C Standby:- Voltage 6.75V~6.90V @ 20°C (68°F)
- Temp Coefficient: - 10mV/°C
For More info on Charging Batteries.
| Recharging Voltage | 7.2V-7.5V |
| Standard Recharge Current | 1.2A |
| Recharging Time | 12hr |
| DC Voltage | 6V |
| Length | 151mm |
| Height | 100mm |
| Depth | 51mm |
| Battery Chemical Composition | Sealed Lead Acid (SLA) |
| Battery usage | Rechargeable |
| Battery Peak Current | 180A |
| Amp Hour Rating | 12Ah |
| 20 Hour Capacity | 12Ah |
| 10 Hour Capacity | 10.8Ah |
| 5 Hour Capacity | 9.6Ah |
| 1 Hour Capacity | 7.2Ah |
| Connection Type | Spade Terminals |
| Type of battery | SLA Block |
| Internal Resistance | 10Ω |
