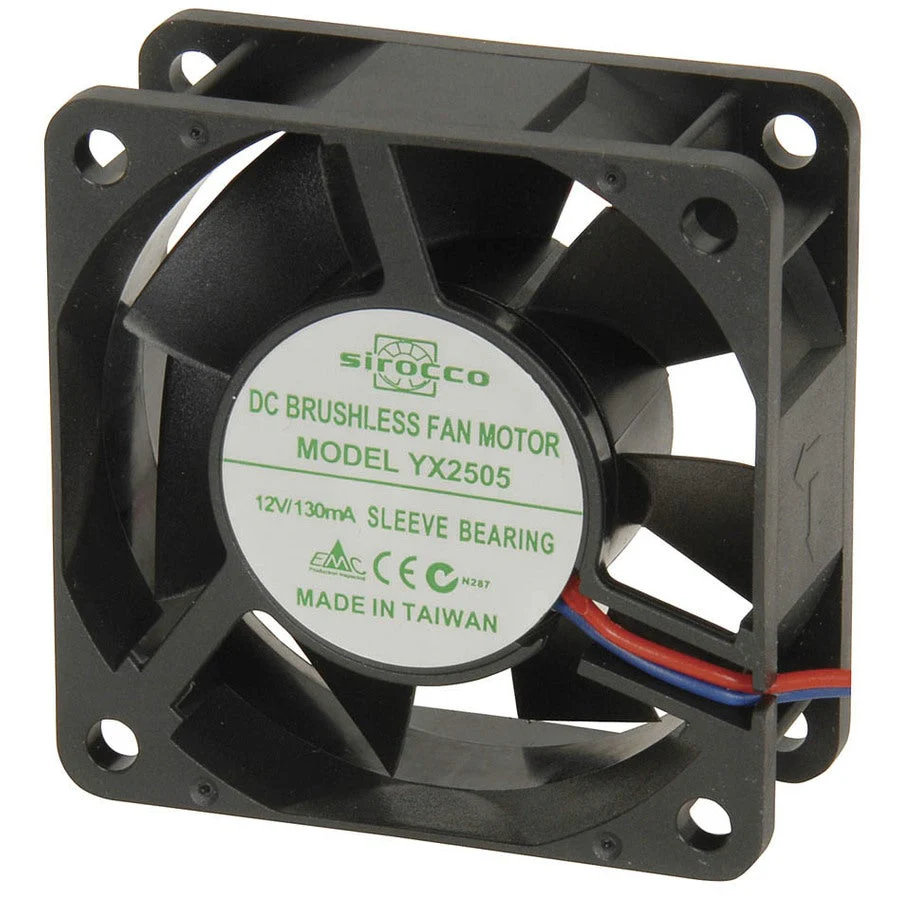

60mm 12VDC Cooling Fan
Features:
- Input 1.6 watts
- Impeller Plastic, fibreglass filled
- Housing Plastic, fibreglass filled.
12V powered cooling fans to help ventilate enclosures or confined spaces in the caravan or RV.
TEK203 60mm
Speed: 4,000 RPM
Air volume: 0.57m3 per min
Dimensions: 60(L) x 60(W) x 25(D)mm
TEK212 120mm
Speed: 3,000 RPM
Air volume: 2.5m3 per min
Dimensions: 120(L) x 120(W) x 25(D)mm
| fan RPM | 4000RPM |
| fan air colume cubic feet | 20ft³/min |
| fan noise | 30dB |
| type of fan | Axial |
| fan air volume cubic metres | 0.57m³/min |
| fan bearing type | Sleeve |
| fan housing material | Plastic |
| fan impeller material | Plastic |
| Fan Operational Life at 25°C | 60000hr |
| fan number of wires | 2pc |
| fan connector type | Flyleads |
| Tachometer Output | No |
| Rated for AU Mains | Yes |
| DC Plugpack Voltage | 12V |
| DC Current Draw | 130mA |
| Mounting Method | Panel |
| Length | 60mm |
| Width | 60mm |
| Depth | 25.4mm |
Downloads
- Download Datasheet
