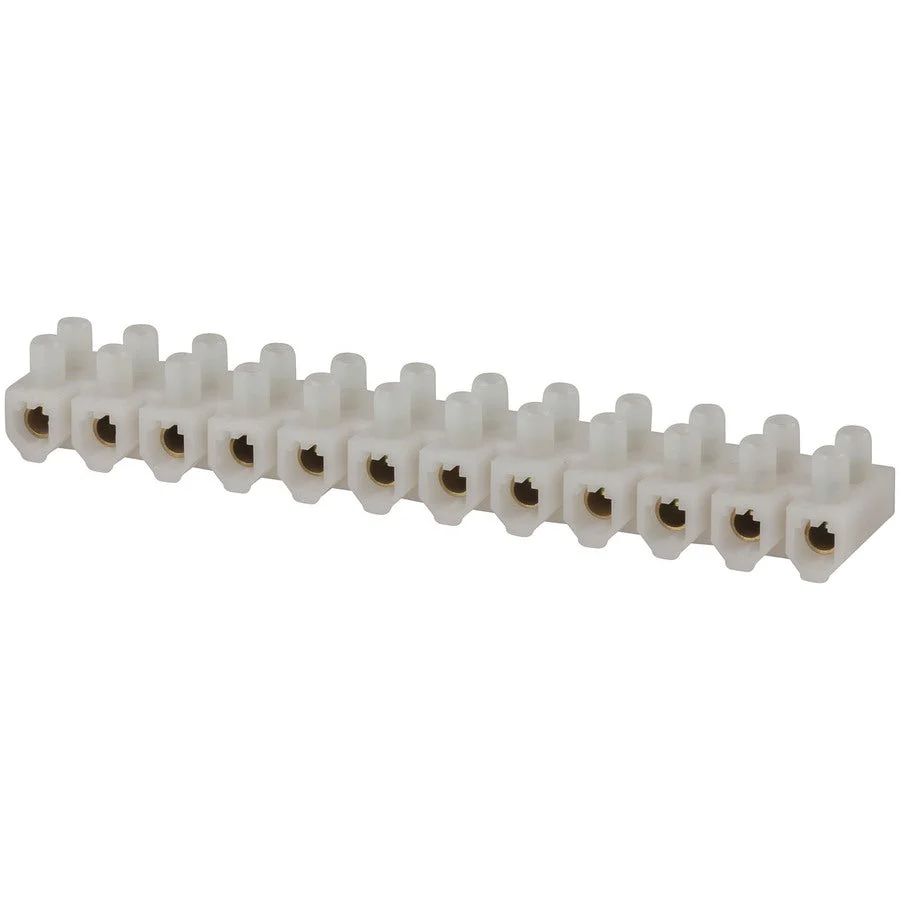

60 Amp 12-way Screw Terminal Strip
12 way & capable of being divided with a sharp knife. Each terminal block has a sturdy mounting hole on a fixed pitch.
Temperature: -35°C ~ 110°C| Current | Cable dia. | Length | Pitch | Cat No. |
| 6A | 3.3mm | 114.5mm | 10mm | HM-3194 |
| 10A | 4.2mm | 128.8mm | 11mm | HM-3196 |
| 15A | 4.5mm | 136.8mm | 12mm | HM-3200 |
| 30A | 5.6mm | 164.5mm | 15mm | HM-3198 |
| 60A | 6.6mm | 193mm | 16.3mm | HM-3204 |
Specifications:
| Terminal Spacing | 16.3mm |
| Type | Screw Terminal |
| Device | Joining Terminal |
| Attachment Method | Screw Terminals |
| Cable Entry Diameter | 6.6mm |
| Number of Contacts | 12pc |
| Body Material | Nylon |
| AC Voltage rating | 250V,450V |
| AC current rating | 60A |
| Length | 193mm |
12 way & capable of being divided with a sharp knife. Each terminal block has a sturdy mounting hole on a fixed pitch.
Temperature: -35°C ~ 110°C| Current | Cable dia. | Length | Pitch | Cat No. |
| 6A | 3.3mm | 114.5mm | 10mm | HM-3194 |
| 10A | 4.2mm | 128.8mm | 11mm | HM-3196 |
| 15A | 4.5mm | 136.8mm | 12mm | HM-3200 |
| 30A | 5.6mm | 164.5mm | 15mm | HM-3198 |
| 60A | 6.6mm | 193mm | 16.3mm | HM-3204 |
Specifications:
| Terminal Spacing | 16.3mm |
| Type | Screw Terminal |
| Device | Joining Terminal |
| Attachment Method | Screw Terminals |
| Cable Entry Diameter | 6.6mm |
| Number of Contacts | 12pc |
| Body Material | Nylon |
| AC Voltage rating | 250V,450V |
| AC current rating | 60A |
| Length | 193mm |
$1.59
Original: $4.55
-65%60 Amp 12-way Screw Terminal Strip—
$4.55
$1.59Description
12 way & capable of being divided with a sharp knife. Each terminal block has a sturdy mounting hole on a fixed pitch.
Temperature: -35°C ~ 110°C| Current | Cable dia. | Length | Pitch | Cat No. |
| 6A | 3.3mm | 114.5mm | 10mm | HM-3194 |
| 10A | 4.2mm | 128.8mm | 11mm | HM-3196 |
| 15A | 4.5mm | 136.8mm | 12mm | HM-3200 |
| 30A | 5.6mm | 164.5mm | 15mm | HM-3198 |
| 60A | 6.6mm | 193mm | 16.3mm | HM-3204 |
Specifications:
| Terminal Spacing | 16.3mm |
| Type | Screw Terminal |
| Device | Joining Terminal |
| Attachment Method | Screw Terminals |
| Cable Entry Diameter | 6.6mm |
| Number of Contacts | 12pc |
| Body Material | Nylon |
| AC Voltage rating | 250V,450V |
| AC current rating | 60A |
| Length | 193mm |
