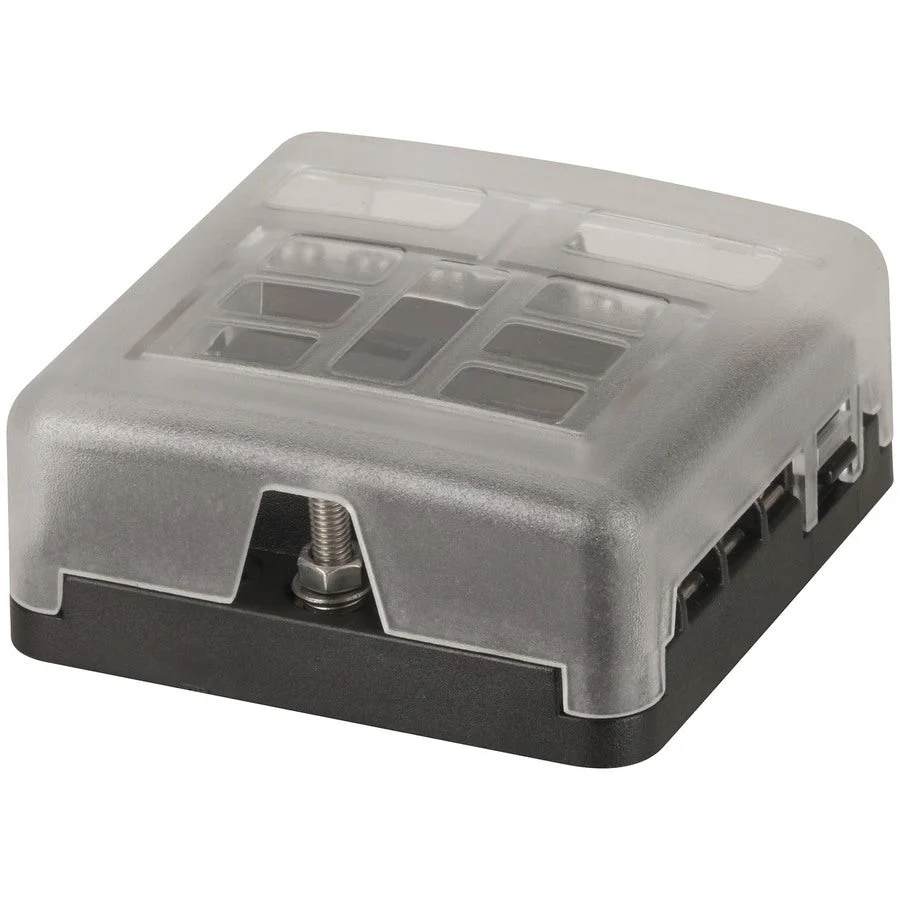

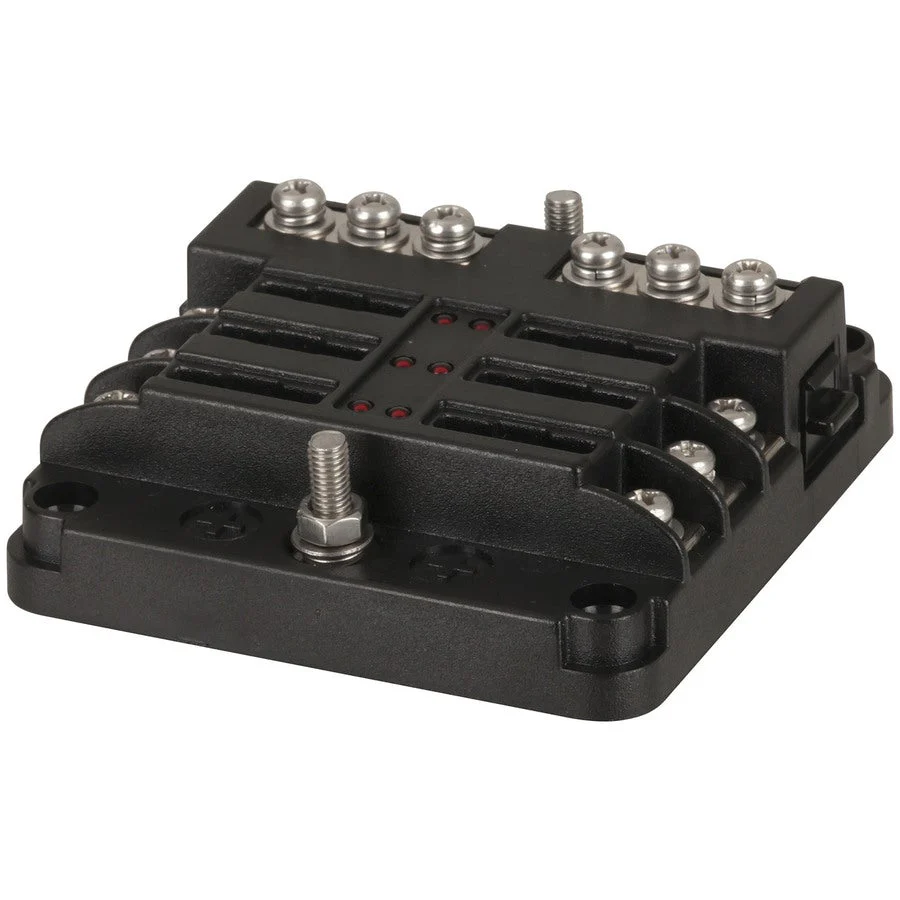

6 Way Fuse Block with Bus Bar
This versatile fuse block provides fused distribution of your positive terminals, as well as distribution for the negative wires. This is especially handy in a boat or caravan which may not have a chassis-ground type system. Each fuse output accepts up to a 30A, up to 100A combined, with handy fuse-blown indication. Fuses not included, uses standard automotive fuses.
Features:
Features:
- Up to 30A per output
- Red LED blown fuse indication
- Negative bus bar
Specifications:
Main Line:
Main Line:
Terminal Rating: M5 Threaded Studs (32VDC, 100A Max.)
Wire Size: #4-6 AWG
Single Line:
Terminal Rating: M4 Threaded Studs (32VDC, 30A Max.)
Wire Size: #12-16 AWG
Terminals: Nickel Plated Copper
Screws: Stainless Steel
Specifications:
| Fuse Type | Blade |
| Width | 85mm |
| Height | 88mm |
| Weight | 160g |
| Depth | 37mm |
This versatile fuse block provides fused distribution of your positive terminals, as well as distribution for the negative wires. This is especially handy in a boat or caravan which may not have a chassis-ground type system. Each fuse output accepts up to a 30A, up to 100A combined, with handy fuse-blown indication. Fuses not included, uses standard automotive fuses.
Features:
Features:
- Up to 30A per output
- Red LED blown fuse indication
- Negative bus bar
Specifications:
Main Line:
Main Line:
Terminal Rating: M5 Threaded Studs (32VDC, 100A Max.)
Wire Size: #4-6 AWG
Single Line:
Terminal Rating: M4 Threaded Studs (32VDC, 30A Max.)
Wire Size: #12-16 AWG
Terminals: Nickel Plated Copper
Screws: Stainless Steel
Specifications:
| Fuse Type | Blade |
| Width | 85mm |
| Height | 88mm |
| Weight | 160g |
| Depth | 37mm |
$8.05
Original: $23.00
-65%6 Way Fuse Block with Bus Bar—
$23.00
$8.05Description
This versatile fuse block provides fused distribution of your positive terminals, as well as distribution for the negative wires. This is especially handy in a boat or caravan which may not have a chassis-ground type system. Each fuse output accepts up to a 30A, up to 100A combined, with handy fuse-blown indication. Fuses not included, uses standard automotive fuses.
Features:
Features:
- Up to 30A per output
- Red LED blown fuse indication
- Negative bus bar
Specifications:
Main Line:
Main Line:
Terminal Rating: M5 Threaded Studs (32VDC, 100A Max.)
Wire Size: #4-6 AWG
Single Line:
Terminal Rating: M4 Threaded Studs (32VDC, 30A Max.)
Wire Size: #12-16 AWG
Terminals: Nickel Plated Copper
Screws: Stainless Steel
Specifications:
| Fuse Type | Blade |
| Width | 85mm |
| Height | 88mm |
| Weight | 160g |
| Depth | 37mm |
