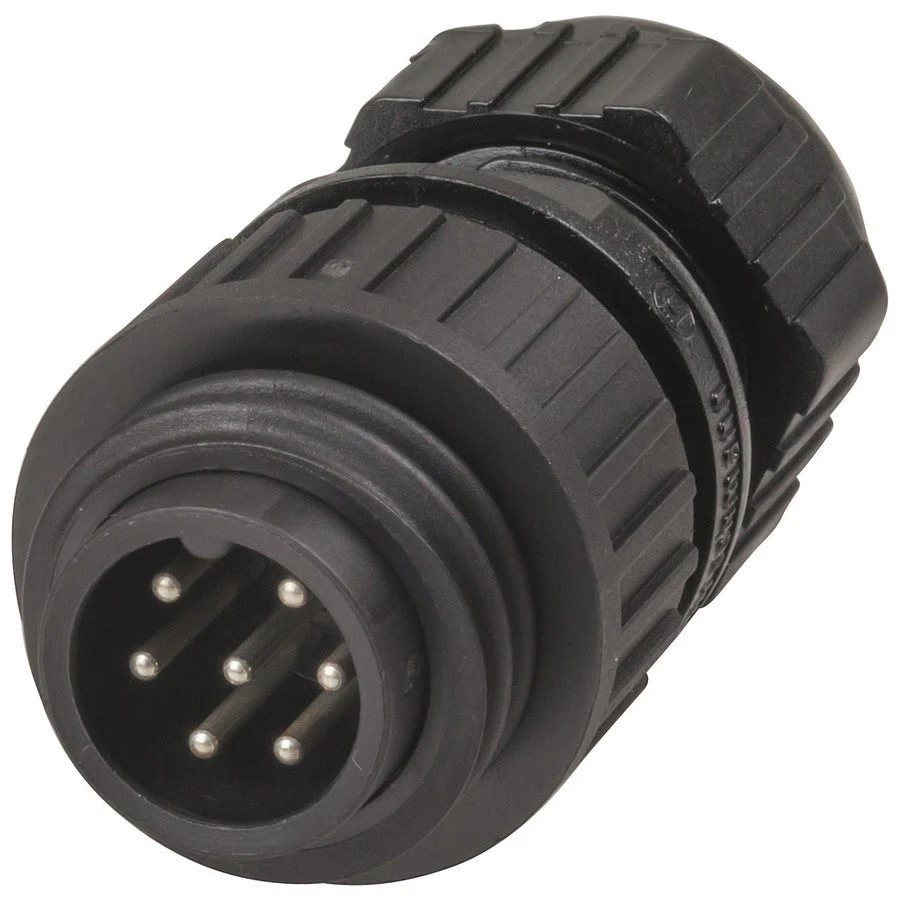

6 Pole + Pre-earth CA Series Line Plug
Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact). For further technical information see specifications. A quality industry-standard connector.
Features:
- Electrical: 6 Pole + PE
- Contact Resistance: <5mohm
Environmental:
- Temperature range: -40°C to + 100°C
- Housing: Polyamide 6.6
- Strain Relief: Screw clamp/Ring & Gland Nut (9mm)
Features:
- Electrical: 6 Pole + PE
- Contact Resistance: <5mohm
Environmental:
- Temperature range: -40°C to + 100°C
- Housing: Polyamide 6.6
- Strain Relief: Screw clamp/Ring & Gland Nut (9mm)
Specifications:
| Pack Quantity | 1pc |
| Device | Plug |
| Plug or Socket Type | C16-1 Series |
| Contacts / Pins | 6pc |
| Case Material | Plastic |
| Attachment Method | Solder Tag |
| Contact Material | Plated Metal |
| Insulation resistance | 10GΩ |
| Cable Entry Diameter | 0.5mm |
| IP Rating certificate | Yes |
| IP Rating | IP67 |
| DC current rating | 10A |
| DC Voltage | 450V |
| AC Voltage rating | 380V |
Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact). For further technical information see specifications. A quality industry-standard connector.
Features:
- Electrical: 6 Pole + PE
- Contact Resistance: <5mohm
Environmental:
- Temperature range: -40°C to + 100°C
- Housing: Polyamide 6.6
- Strain Relief: Screw clamp/Ring & Gland Nut (9mm)
Features:
- Electrical: 6 Pole + PE
- Contact Resistance: <5mohm
Environmental:
- Temperature range: -40°C to + 100°C
- Housing: Polyamide 6.6
- Strain Relief: Screw clamp/Ring & Gland Nut (9mm)
Specifications:
| Pack Quantity | 1pc |
| Device | Plug |
| Plug or Socket Type | C16-1 Series |
| Contacts / Pins | 6pc |
| Case Material | Plastic |
| Attachment Method | Solder Tag |
| Contact Material | Plated Metal |
| Insulation resistance | 10GΩ |
| Cable Entry Diameter | 0.5mm |
| IP Rating certificate | Yes |
| IP Rating | IP67 |
| DC current rating | 10A |
| DC Voltage | 450V |
| AC Voltage rating | 380V |
$16.08
6 Pole + Pre-earth CA Series Line Plug—
$16.08
Description
Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact). For further technical information see specifications. A quality industry-standard connector.
Features:
- Electrical: 6 Pole + PE
- Contact Resistance: <5mohm
Environmental:
- Temperature range: -40°C to + 100°C
- Housing: Polyamide 6.6
- Strain Relief: Screw clamp/Ring & Gland Nut (9mm)
Features:
- Electrical: 6 Pole + PE
- Contact Resistance: <5mohm
Environmental:
- Temperature range: -40°C to + 100°C
- Housing: Polyamide 6.6
- Strain Relief: Screw clamp/Ring & Gland Nut (9mm)
Specifications:
| Pack Quantity | 1pc |
| Device | Plug |
| Plug or Socket Type | C16-1 Series |
| Contacts / Pins | 6pc |
| Case Material | Plastic |
| Attachment Method | Solder Tag |
| Contact Material | Plated Metal |
| Insulation resistance | 10GΩ |
| Cable Entry Diameter | 0.5mm |
| IP Rating certificate | Yes |
| IP Rating | IP67 |
| DC current rating | 10A |
| DC Voltage | 450V |
| AC Voltage rating | 380V |
