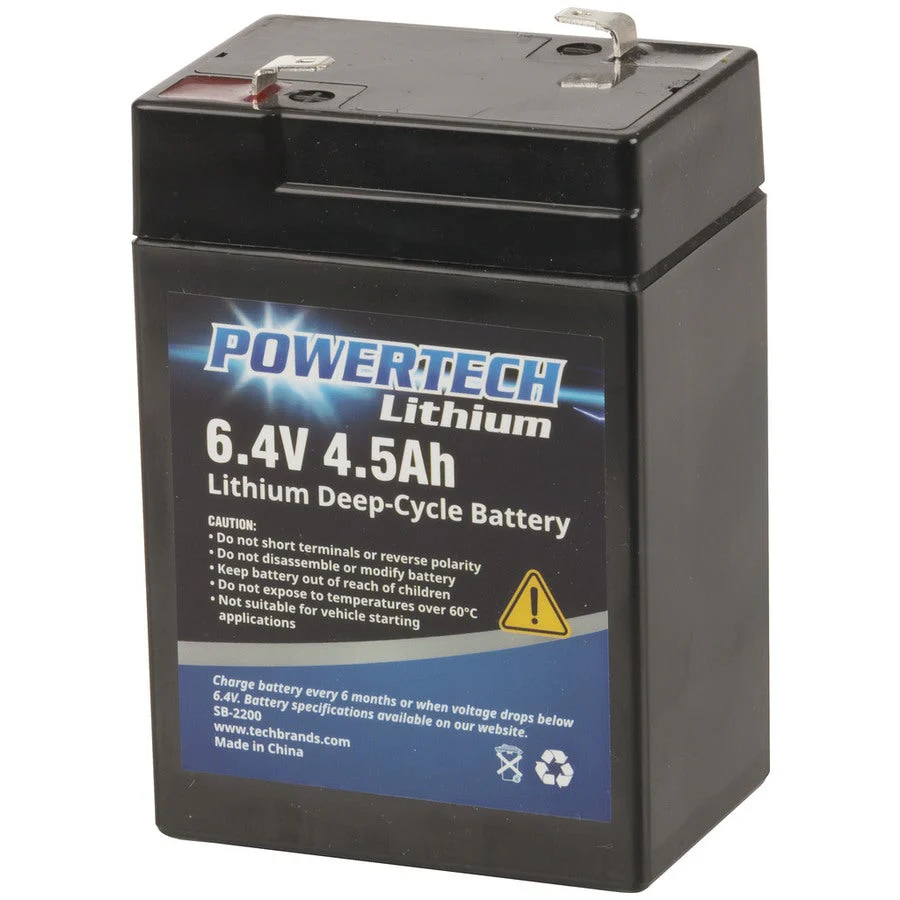

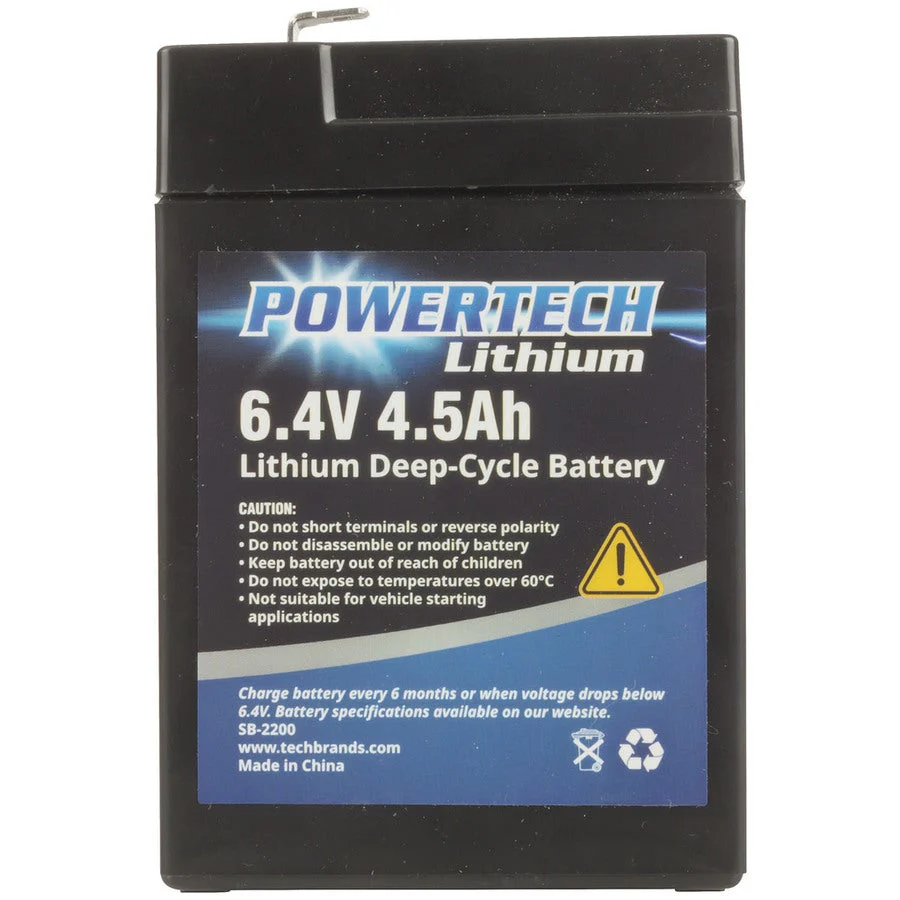

6.4V 4.5Ah Lithium Deep Cycle Battery

Product image 1
1 / 2

6.4V 4.5Ah Lithium Deep Cycle Battery

Airfreight Not Available

The next generation of power storage is here! These LiFePO4 batteries weigh less than half of their Lead Acid counterparts. They may look fairly similar to lead acid batteries, but internally they’re a totally different, next generation concept. They’re actually made up of regular 18650 LiFePO4 cells, which are in mass production for many portable devices. An internal battery management system (BMS) ensures all cells are uniformly charged and discharged, as well as providing short circuit, over current, and reverse polarity protection. This provides you with a higher degree of protection than a traditional lead acid battery which is unprotected, and can discharge rapidly under short circuit conditions, causing fire and damage. The internal BMS will also limit discharge and manage cut-off voltage, to further protect the internal cells.

This 4.5Ah model can provide continuous current up to 4.5A with peaks of 9A. Absolutely perfect for portable power, and replacement of similar capacity lead acid / AGM battery. Also often found in alarm systems, and other critical systems with backup batteries.

Features:
- Much lighter than Lead Acid and AGM Batteries
- Robust LiFePO4 Cells
- Excellent life span

Specifications:
Service Life: 10yrs+
Cycle Life: 1500+ cycles (> 80% capacity retention)
Cut-Off Voltage: 5.0V approx.
Charge Type: Constant Current / Constant Voltage
Discharge Current: 4.5A
Max Continuous Current: ≤9A (≤5 sec)
Internal Cells: 18650 LiFePO4
Maximum Internal Resistance:  55mΩ
Operating Temperature: 0-45°C (60°C max discharging)
Operating Humidity: RH < 85%
Storage Temperature: 0-40°C (15-25°C recommended)
Storage Humidity: RH < 50%




Specifications:

Recharging Voltage 7.2V
Standard Recharge Current 4A

Battery Chemical Composition Lithium Ferrous Phosphate (LiFePO4)
Connection Type Spade Terminals
Amp Hour Rating 4.5Ah

DC Voltage 6.4V

Width 70mm
Height 101mm
Depth 47mm
Weight 360g

DG UN Number 3480
DG Ship Name 3480 - Lithium Ion Batteries
DG Class ii
DG Pack Group Not Required
DG Hazardous Chemical Code N
Battery Watt Hour Rating (Required for Lithium Batteries) 28.8Wh

Downloads

  • Download Datasheet
