5 Volt SPST DIL Reed Relay
They will fit into a 14 pin IC socket, are highly sensitive and can be driven by TTL, etc. SPST normally open.
Features:
- Must Op: 3.75VDC
- Must Release: 0.8VDC
- Contact Voltage: 18max
Specifications:
| DC Contact Voltage | 5V |
| Coil Resistance | 500Ω |
| Pickup Voltage | 3.75V |
| Coil Current | 10mA |
| Dropout Voltage | 0.8V |
| Device Type | Reed Relay |
| Input | DC |
| Contact format | SPST |
| Nominal Voltage | 5V |
| DC Voltage | 5V |
| Mounting Method | PCB |

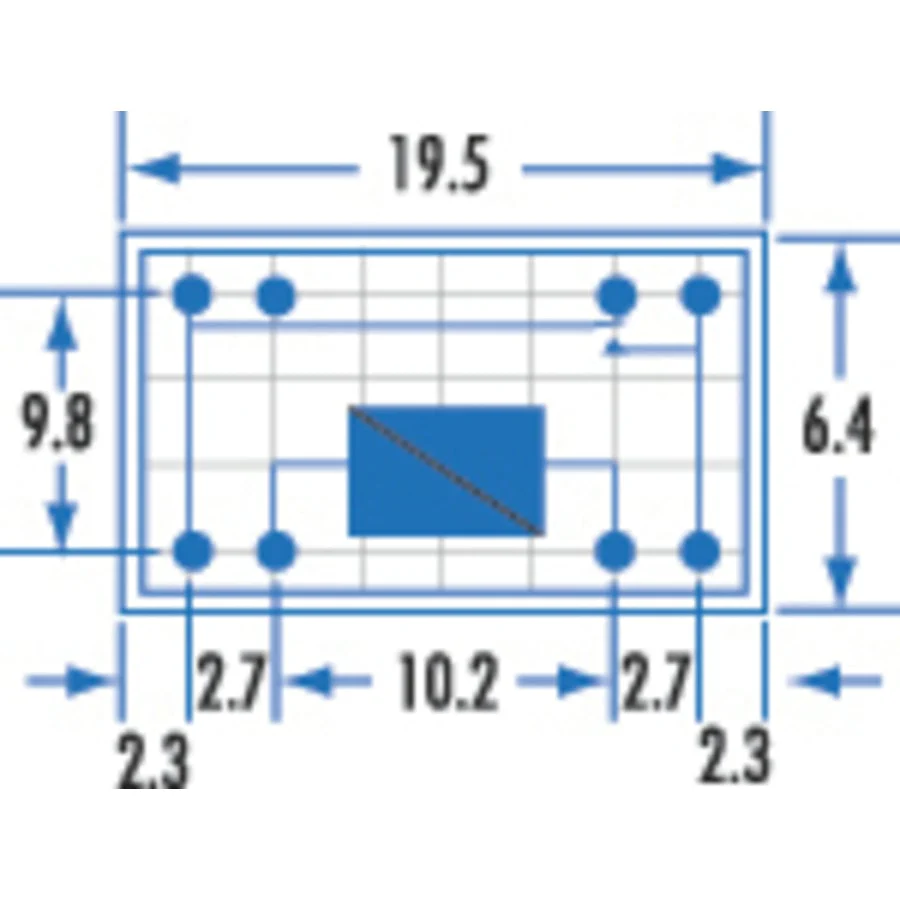

| Length | 19.5mm |
| Width | 10.2mm |
| Height | 9.8mm |
Downloads
- Download Datasheet
They will fit into a 14 pin IC socket, are highly sensitive and can be driven by TTL, etc. SPST normally open.
Features:
- Must Op: 3.75VDC
- Must Release: 0.8VDC
- Contact Voltage: 18max
Specifications:
| DC Contact Voltage | 5V |
| Coil Resistance | 500Ω |
| Pickup Voltage | 3.75V |
| Coil Current | 10mA |
| Dropout Voltage | 0.8V |
| Device Type | Reed Relay |
| Input | DC |
| Contact format | SPST |
| Nominal Voltage | 5V |
| DC Voltage | 5V |
| Mounting Method | PCB |
| Length | 19.5mm |
| Width | 10.2mm |
| Height | 9.8mm |
Downloads
- Download Datasheet
$3.29
5 Volt SPST DIL Reed Relay—
$3.29
