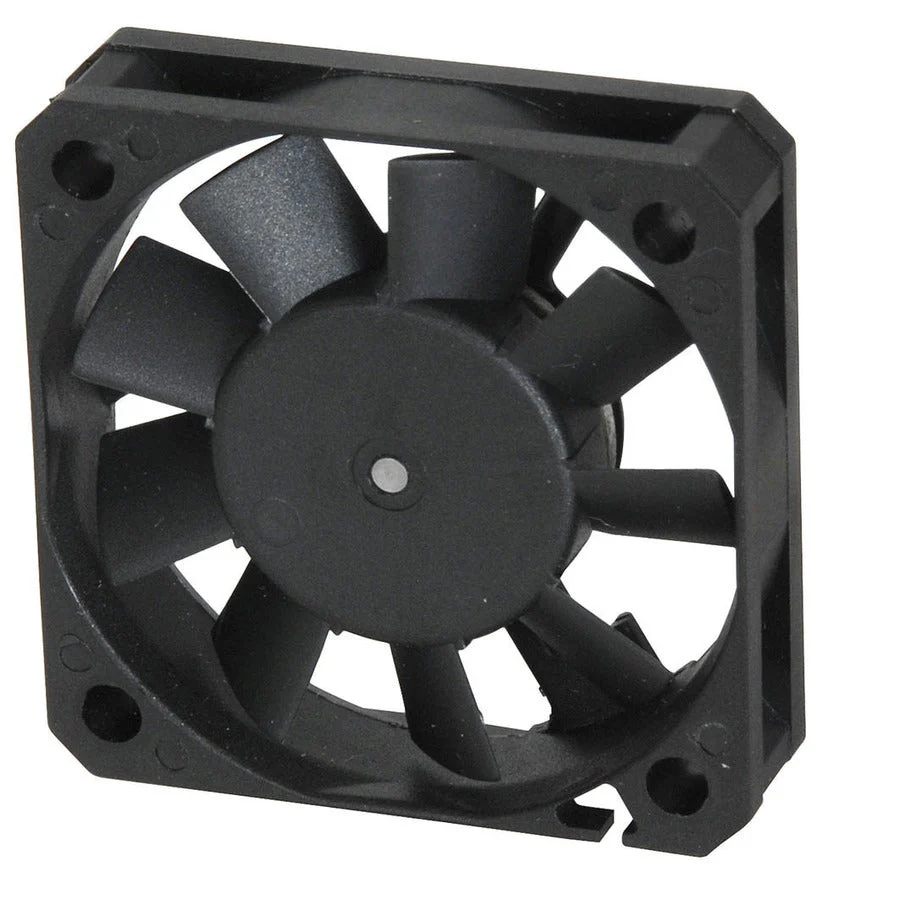

40mm 12V DC Thin Fan
Suitable for computers, office machinery, appliances, copying machines, power units, amplifiers, automatic vending machines, air conditioning, medical machines etc.
- Long life - 60,000 hours @ 25degC, 30,000 hours @ 40degC
- Ball bearing: 100,000 hours @ 25degC
- Can be mounted on suction or discharge side
- Wiring will not burn out, even if rotating parts are restricted.
Specifications:
| fan RPM | 6000RPM |
| fan air colume cubic feet | 5.4ft³/min |
| fan noise | 30dB |
| type of fan | Axial |
| fan air volume cubic metres | 0.16m³/min |
| fan bearing type | Sleeve |
| fan housing material | Plastic |
| fan impeller material | Plastic |
| Fan Operational Life at 25°C | 60000hr |
| fan number of wires | 2pc |
| fan connector type | Flyleads |
| Item Connection | Flyleads |
| DC Plugpack Voltage | 12V |
| DC Current Draw | 80mA |
| Mounting Method | Through Hole |
| Length | 40mm |
| Height | 40mm |
| Depth | 10mm |
Suitable for computers, office machinery, appliances, copying machines, power units, amplifiers, automatic vending machines, air conditioning, medical machines etc.
- Long life - 60,000 hours @ 25degC, 30,000 hours @ 40degC
- Ball bearing: 100,000 hours @ 25degC
- Can be mounted on suction or discharge side
- Wiring will not burn out, even if rotating parts are restricted.
Specifications:
| fan RPM | 6000RPM |
| fan air colume cubic feet | 5.4ft³/min |
| fan noise | 30dB |
| type of fan | Axial |
| fan air volume cubic metres | 0.16m³/min |
| fan bearing type | Sleeve |
| fan housing material | Plastic |
| fan impeller material | Plastic |
| Fan Operational Life at 25°C | 60000hr |
| fan number of wires | 2pc |
| fan connector type | Flyleads |
| Item Connection | Flyleads |
| DC Plugpack Voltage | 12V |
| DC Current Draw | 80mA |
| Mounting Method | Through Hole |
| Length | 40mm |
| Height | 40mm |
| Depth | 10mm |
$13.78
40mm 12V DC Thin Fan—
$13.78
Description
Suitable for computers, office machinery, appliances, copying machines, power units, amplifiers, automatic vending machines, air conditioning, medical machines etc.
- Long life - 60,000 hours @ 25degC, 30,000 hours @ 40degC
- Ball bearing: 100,000 hours @ 25degC
- Can be mounted on suction or discharge side
- Wiring will not burn out, even if rotating parts are restricted.
Specifications:
| fan RPM | 6000RPM |
| fan air colume cubic feet | 5.4ft³/min |
| fan noise | 30dB |
| type of fan | Axial |
| fan air volume cubic metres | 0.16m³/min |
| fan bearing type | Sleeve |
| fan housing material | Plastic |
| fan impeller material | Plastic |
| Fan Operational Life at 25°C | 60000hr |
| fan number of wires | 2pc |
| fan connector type | Flyleads |
| Item Connection | Flyleads |
| DC Plugpack Voltage | 12V |
| DC Current Draw | 80mA |
| Mounting Method | Through Hole |
| Length | 40mm |
| Height | 40mm |
| Depth | 10mm |
