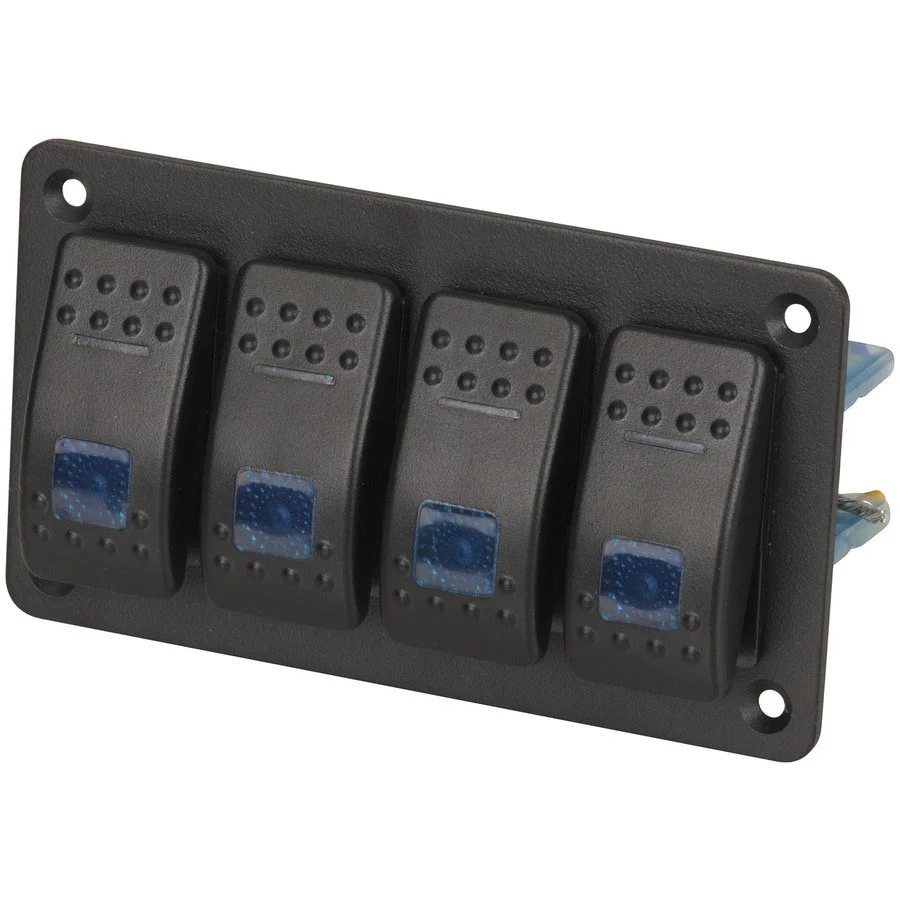

4 Way Illuminated Blue Rocker Switch Panel

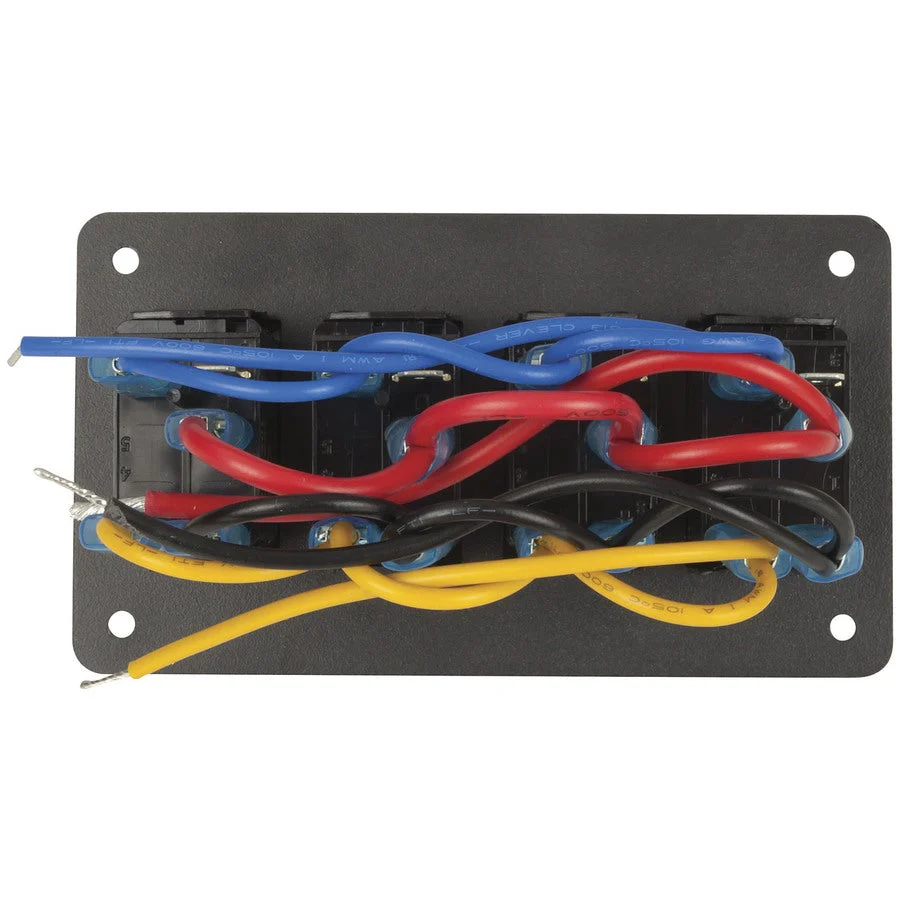

Straight forward installation and wiring, with just four connections - everything else is pre-wired! Then all you need to do is connect your various peripheral devices. Switches are rated at 20A for a 12V system (10A for 24V) up to a maximum 45A per panel. The LED illumination is powered separately, so you can run it through a switch or dimmer too.
Features:
- Easy installation
- High quality switches
- Blue LED illumination
Specifications:
Specifications:
Switch Rating: 12VDC @ 20A, 24VDC @ 10A
Panel Rating: 45A
Specifications:
| Switch Type | Rocker |
| Switch Function | Locking On/Off |
| Switch Connection | Spade Terminals |
| Attachment / Securing Method | Screw Down |
| Square Mount Hole Width | 42mm |
| Square Mount Hole Height | 105mm |
| Mounting Method | Panel |
| Width | 70mm |
| Height | 124mm |
| Weight | 195g |
Straight forward installation and wiring, with just four connections - everything else is pre-wired! Then all you need to do is connect your various peripheral devices. Switches are rated at 20A for a 12V system (10A for 24V) up to a maximum 45A per panel. The LED illumination is powered separately, so you can run it through a switch or dimmer too.
Features:
- Easy installation
- High quality switches
- Blue LED illumination
Specifications:
Specifications:
Switch Rating: 12VDC @ 20A, 24VDC @ 10A
Panel Rating: 45A
Specifications:
| Switch Type | Rocker |
| Switch Function | Locking On/Off |
| Switch Connection | Spade Terminals |
| Attachment / Securing Method | Screw Down |
| Square Mount Hole Width | 42mm |
| Square Mount Hole Height | 105mm |
| Mounting Method | Panel |
| Width | 70mm |
| Height | 124mm |
| Weight | 195g |
