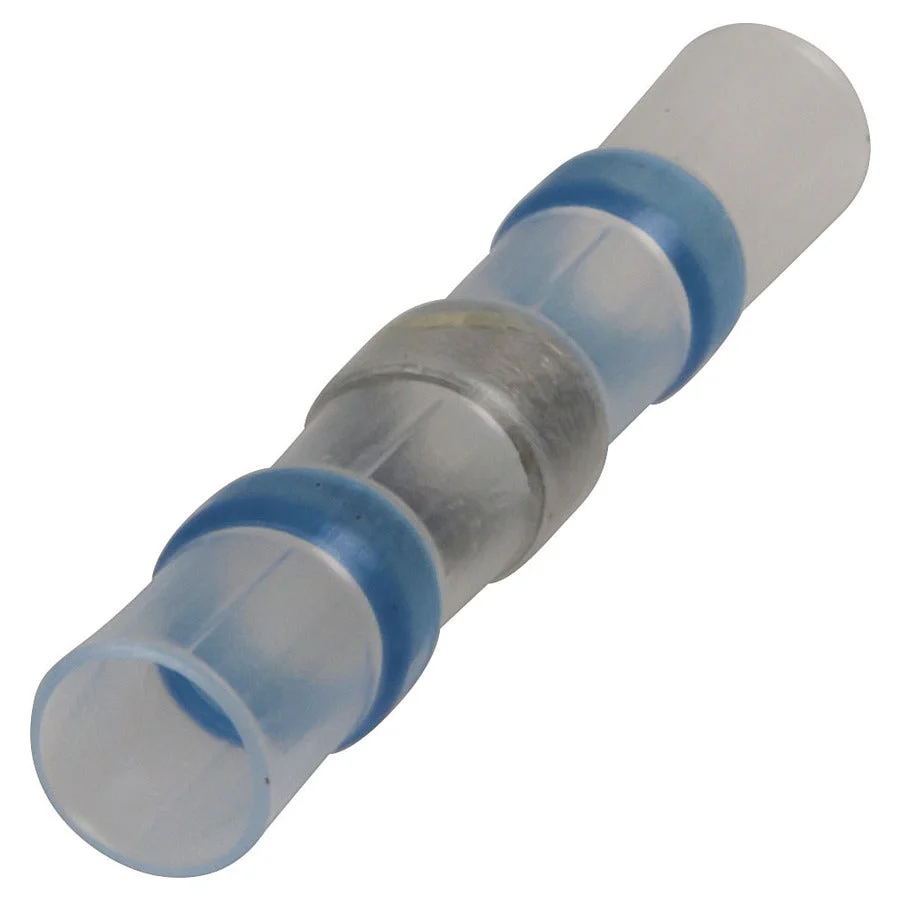

4.5mm Solder Splice Heatshrink - Pack of 5
Solder splice heatshrink tubes allow you to quickly join two cables thanks to the small section of solder in the middle of the tube. Simply slide a tube over the join in two cables and heat as you would any other shrink tube. As the tube shrinks the solder melts to electrically connect the wires resulting in a join which is reliable and well insulated.
| Heatshrink Tube Diameter | 4.5mm |
| Heatshrink Length | 40m |
| Shrink Ratio | 2:1 |
| Pack Quantity | 5pc |
| Minimum Shrink Temperature | 85°C |
| Melting Temperature | 140°C |
| Operating Temperature | -55°C-125°C |
| Colour | Blue |
Downloads
- Download Datasheet
Solder splice heatshrink tubes allow you to quickly join two cables thanks to the small section of solder in the middle of the tube. Simply slide a tube over the join in two cables and heat as you would any other shrink tube. As the tube shrinks the solder melts to electrically connect the wires resulting in a join which is reliable and well insulated.
| Heatshrink Tube Diameter | 4.5mm |
| Heatshrink Length | 40m |
| Shrink Ratio | 2:1 |
| Pack Quantity | 5pc |
| Minimum Shrink Temperature | 85°C |
| Melting Temperature | 140°C |
| Operating Temperature | -55°C-125°C |
| Colour | Blue |
Downloads
- Download Datasheet
Original: $4.44
-65%$4.44
$1.55Description
Solder splice heatshrink tubes allow you to quickly join two cables thanks to the small section of solder in the middle of the tube. Simply slide a tube over the join in two cables and heat as you would any other shrink tube. As the tube shrinks the solder melts to electrically connect the wires resulting in a join which is reliable and well insulated.
| Heatshrink Tube Diameter | 4.5mm |
| Heatshrink Length | 40m |
| Shrink Ratio | 2:1 |
| Pack Quantity | 5pc |
| Minimum Shrink Temperature | 85°C |
| Melting Temperature | 140°C |
| Operating Temperature | -55°C-125°C |
| Colour | Blue |
Downloads
- Download Datasheet
