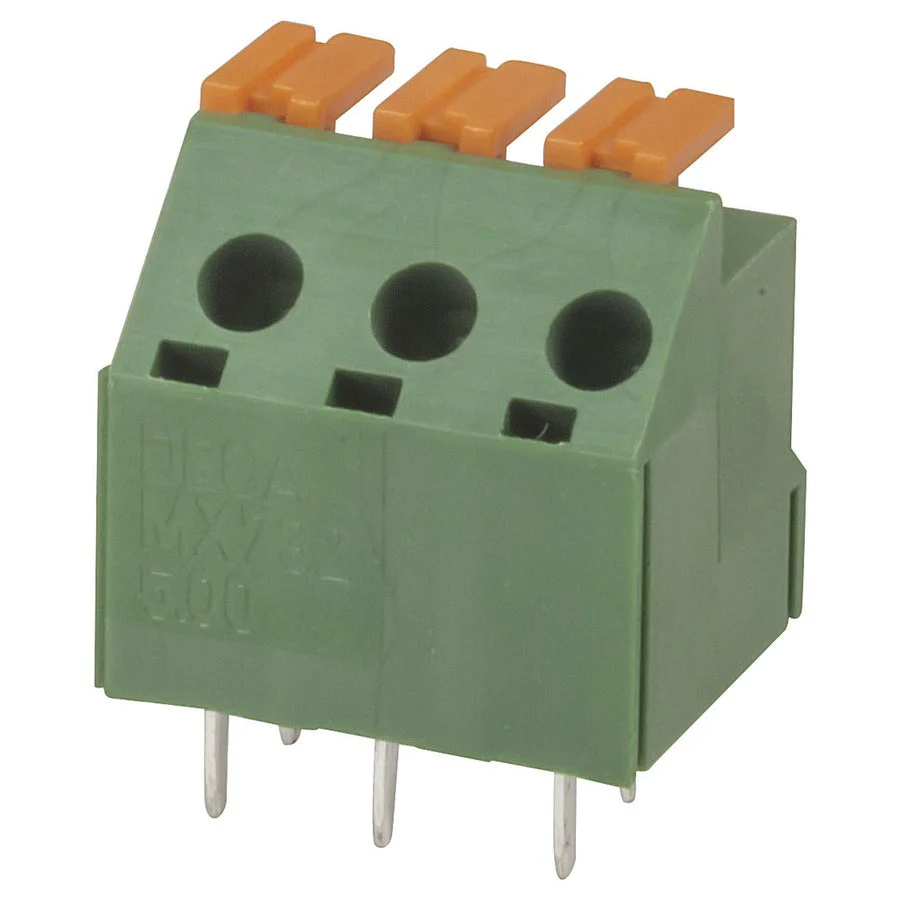

3 Way Spring Terminal Block
These PCB terminal blocks retain the wire securely by a spring type clamp. The wire is held very securely but can be quickly released by depressing a release lever. The wire can be inserted/released indefinitely with virtually no deterioration of the contact/spring assembly. Both 2 & 3 pole are available and the housing of each is dove tailed to stack together and make any number of poles.
• Pitch: 5.0mm
• Housing material: PA66
• Contact/spring assembly: Stainless Steel
• Will accept wires from 22-14AWG
• Temperature rating: -40 to +105°C
• Power rating: 5kV rated / 250VAC Cat III
Also available:
HM3140 - 2 Way Spring Terminal Block
• Pitch: 5.0mm
• Housing material: PA66
• Contact/spring assembly: Stainless Steel
• Will accept wires from 22-14AWG
• Temperature rating: -40 to +105°C
• Power rating: 5kV rated / 250VAC Cat III
Also available:
HM3140 - 2 Way Spring Terminal Block
Specifications:
| Terminal Spacing | 5mm |
| Type | Spring Terminals |
| Device | Terminal |
| Attachment Method | Spring Terminals |
| Number of Contacts | 3pc |
| DC current rating | 12A |
| AC Voltage rating | 300V |
| AC current rating | 12A |
| Mounting Method | PCB |
| Colour | Green |
| Operating Temperature | 105°C |
| Length | 15mm |
| Width | 13mm |
| Height | 15mm |
These PCB terminal blocks retain the wire securely by a spring type clamp. The wire is held very securely but can be quickly released by depressing a release lever. The wire can be inserted/released indefinitely with virtually no deterioration of the contact/spring assembly. Both 2 & 3 pole are available and the housing of each is dove tailed to stack together and make any number of poles.
• Pitch: 5.0mm
• Housing material: PA66
• Contact/spring assembly: Stainless Steel
• Will accept wires from 22-14AWG
• Temperature rating: -40 to +105°C
• Power rating: 5kV rated / 250VAC Cat III
Also available:
HM3140 - 2 Way Spring Terminal Block
• Pitch: 5.0mm
• Housing material: PA66
• Contact/spring assembly: Stainless Steel
• Will accept wires from 22-14AWG
• Temperature rating: -40 to +105°C
• Power rating: 5kV rated / 250VAC Cat III
Also available:
HM3140 - 2 Way Spring Terminal Block
Specifications:
| Terminal Spacing | 5mm |
| Type | Spring Terminals |
| Device | Terminal |
| Attachment Method | Spring Terminals |
| Number of Contacts | 3pc |
| DC current rating | 12A |
| AC Voltage rating | 300V |
| AC current rating | 12A |
| Mounting Method | PCB |
| Colour | Green |
| Operating Temperature | 105°C |
| Length | 15mm |
| Width | 13mm |
| Height | 15mm |
