3 pole Sealed PCB Rotary

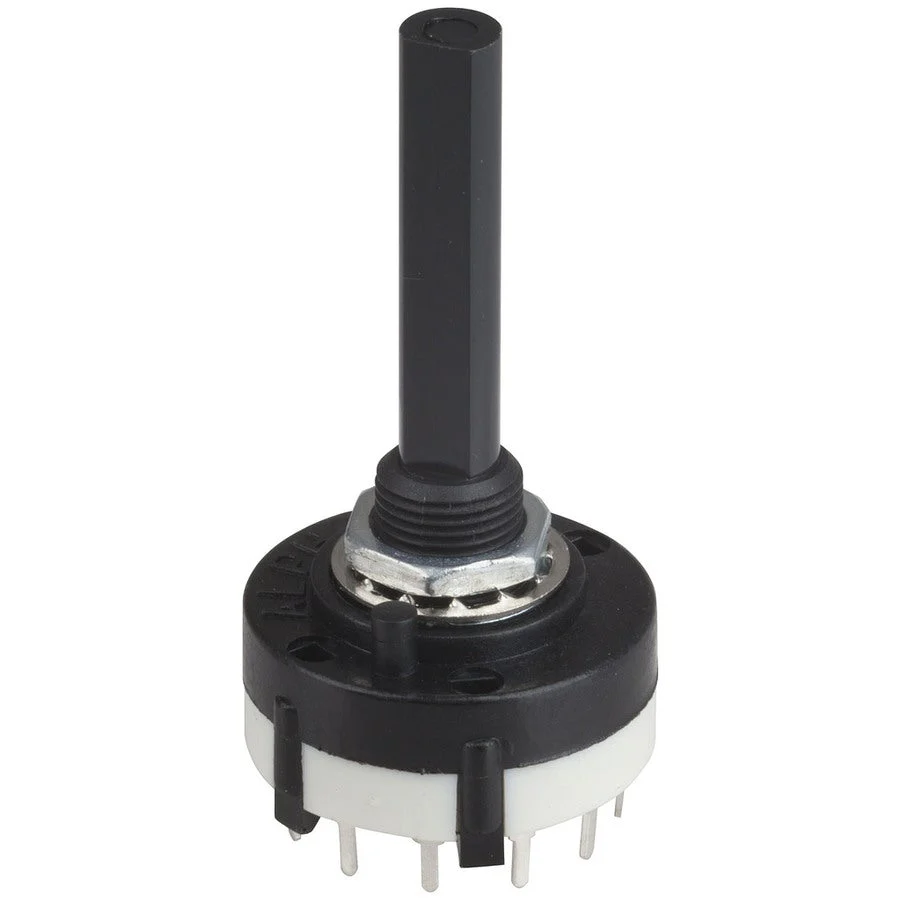

Product image 1

3 pole Sealed PCB Rotary

These switches have a removable ring with tab which can be inserted into the switch several ways to your particular requirements. For example, if you purchased a 1 pole x 12 way (max) switch you could convert it to, say, 1 pole 7 way between stops. They have a standard 1/4 shaft.
From 3 pole 2 position to 3 pole 4 position

Specifications:

Break/Make Function Break Before Make (BBM)
Switch Type Rotary
Poles / Contacts 3 pole
Throws / Positions 4pos
Switch Connection Spade Terminals

Mounting Method PCB
Attachment / Securing Method Snap-in
Round Mount Hole Diameter 10mm

AC Voltage rating 240V

AC current rating 150mA

Downloads

  • Download Datasheet
These switches have a removable ring with tab which can be inserted into the switch several ways to your particular requirements. For example, if you purchased a 1 pole x 12 way (max) switch you could convert it to, say, 1 pole 7 way between stops. They have a standard 1/4 shaft.
From 3 pole 2 position to 3 pole 4 position

Specifications:

Break/Make Function Break Before Make (BBM)
Switch Type Rotary
Poles / Contacts 3 pole
Throws / Positions 4pos
Switch Connection Spade Terminals

Mounting Method PCB
Attachment / Securing Method Snap-in
Round Mount Hole Diameter 10mm

AC Voltage rating 240V

AC current rating 150mA

Downloads

  • Download Datasheet
$3.34
3 pole Sealed PCB Rotary
$3.34
