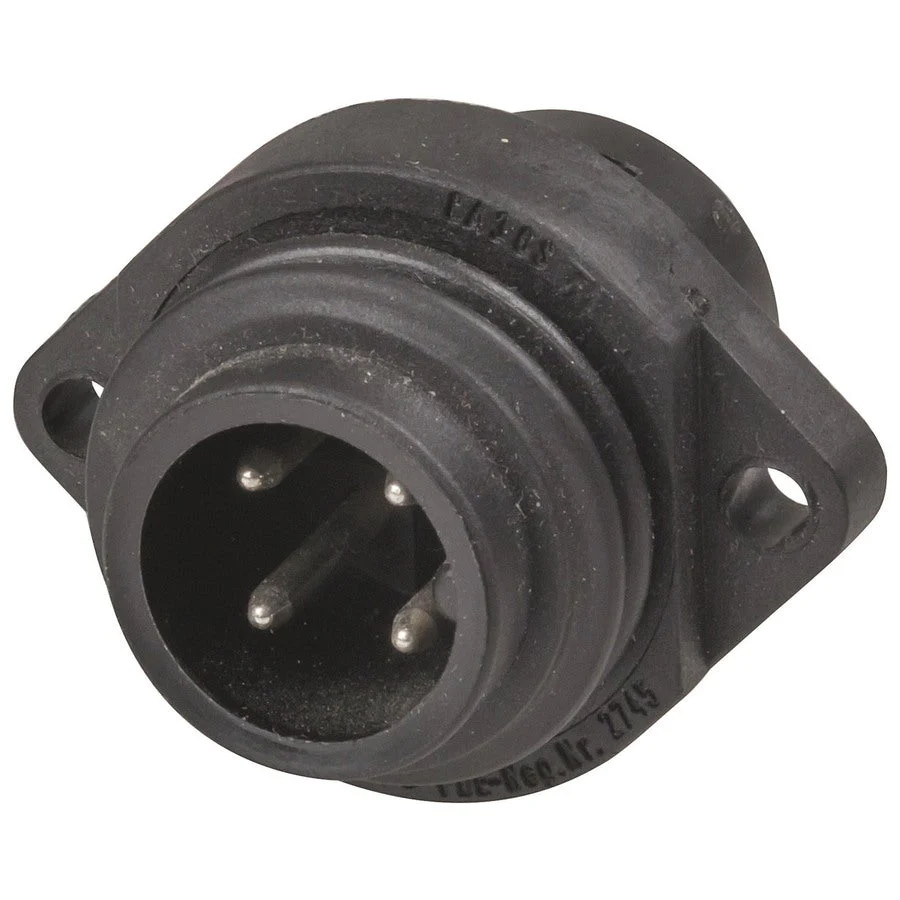

3 Pole + Pre-earth CA Series Panel Plug
Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact). The mating parts securely screw together to form environmental protection to IP-67. For further technical information see specifications. A quality industry-standard connector.
Features
- Electrical: 3 Pole + PE
- Contact Resistance: ≤5mohm
- Suitable for panel mount.
Environmental:
- Temperature range: -40°C to + 100°C
- Housing: Polyamide 6.6
- Strain Relief: Screw clamp/Ring & Gland Nut (9mm)
| DC current rating | 16A |
| DC Voltage | 450V |
| AC Voltage rating | 380V |
| IP Rating certificate | Yes |
| IP Rating | IP67 |
| Pack Quantity | 1pc |
| Device | Plug |
| Plug or Socket Type | C16-1 Series |
| Contacts / Pins | 3pc |
| Case Material | Plastic |
| Attachment Method | Solder Tag |
| Contact Material | Plated Metal |
| Insulation resistance | 10GΩ |
| Cable Entry Diameter | 0.9mm |
