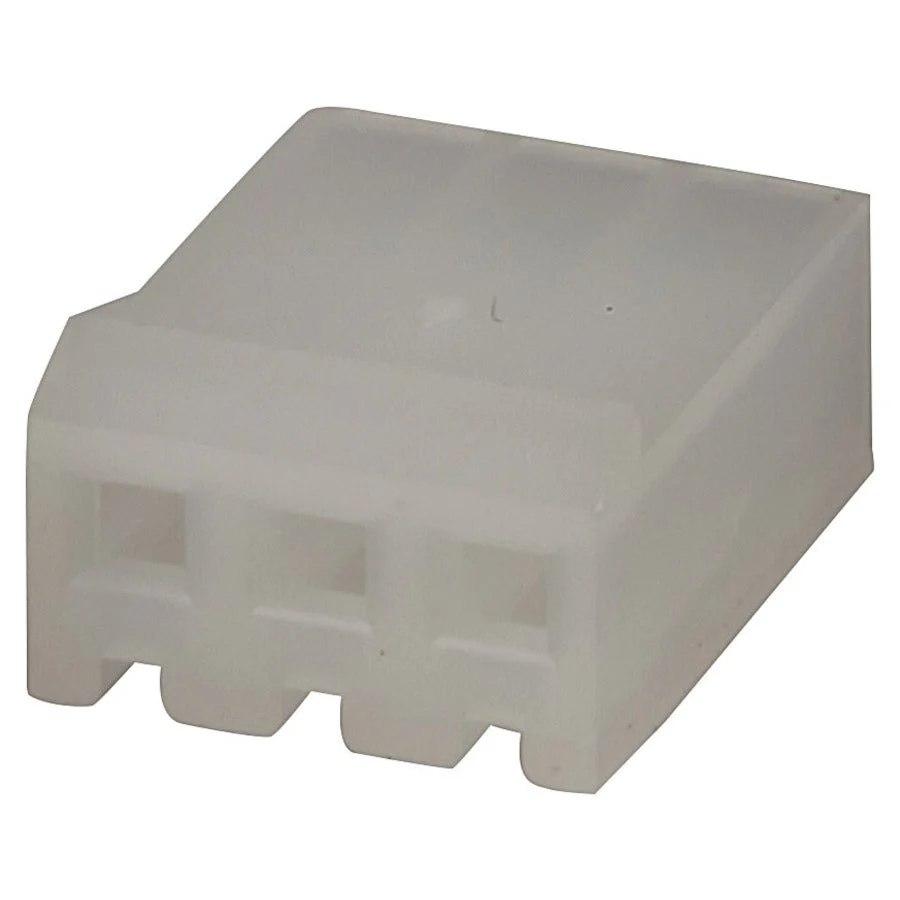

3 Pin 0.156 Header with crimp pins - 3.96 pitch
The contacts are rated at 250V @ 7A AC/DC which makes them an ideal power connector to a PCB. They are end to end stackable and commonly seen as the output connector on Switchmode power supplies.
Features:
- Wire Pull- Out force: 2.85kg
- Unmating Force: 150g
- Durability: 25 cycles
- Housing: Nylon, UL 94V- 2
- Temperature: - 40 to 105°C
Features:
- Wire Pull- Out force: 2.85kg
- Unmating Force: 150g
- Durability: 25 cycles
- Housing: Nylon, UL 94V- 2
- Temperature: - 40 to 105°C
Specifications:
| Type | Single Row Header |
| Device | Socket |
| Attachment Method | Crimp |
| Number of Pins | 3pc |
| Pin Spacing | 4mm (5/32") |
| Pack Quantity | 1pc |
| Pin Size | 0.1mm |
| Insulation Dielectric Voltage Rating | 1500V |
| Insulation Resistance | 500kΩ |
| header locking | Yes |
| header polarised | Yes |
| Mating Force | 199gg |
| Contact Insertion Force | 681g |
| Contact Retention to Housing | 3.63kg |
| DC Voltage | 250V |
| DC current rating | 2.5A |
| AC current rating | 2.5A |
| Mounting Method | PCB |
| Operating Temperature | 105°C |
The contacts are rated at 250V @ 7A AC/DC which makes them an ideal power connector to a PCB. They are end to end stackable and commonly seen as the output connector on Switchmode power supplies.
Features:
- Wire Pull- Out force: 2.85kg
- Unmating Force: 150g
- Durability: 25 cycles
- Housing: Nylon, UL 94V- 2
- Temperature: - 40 to 105°C
Features:
- Wire Pull- Out force: 2.85kg
- Unmating Force: 150g
- Durability: 25 cycles
- Housing: Nylon, UL 94V- 2
- Temperature: - 40 to 105°C
Specifications:
| Type | Single Row Header |
| Device | Socket |
| Attachment Method | Crimp |
| Number of Pins | 3pc |
| Pin Spacing | 4mm (5/32") |
| Pack Quantity | 1pc |
| Pin Size | 0.1mm |
| Insulation Dielectric Voltage Rating | 1500V |
| Insulation Resistance | 500kΩ |
| header locking | Yes |
| header polarised | Yes |
| Mating Force | 199gg |
| Contact Insertion Force | 681g |
| Contact Retention to Housing | 3.63kg |
| DC Voltage | 250V |
| DC current rating | 2.5A |
| AC current rating | 2.5A |
| Mounting Method | PCB |
| Operating Temperature | 105°C |
$0.24
Original: $0.69
-65%3 Pin 0.156 Header with crimp pins - 3.96 pitch—
$0.69
$0.24Description
The contacts are rated at 250V @ 7A AC/DC which makes them an ideal power connector to a PCB. They are end to end stackable and commonly seen as the output connector on Switchmode power supplies.
