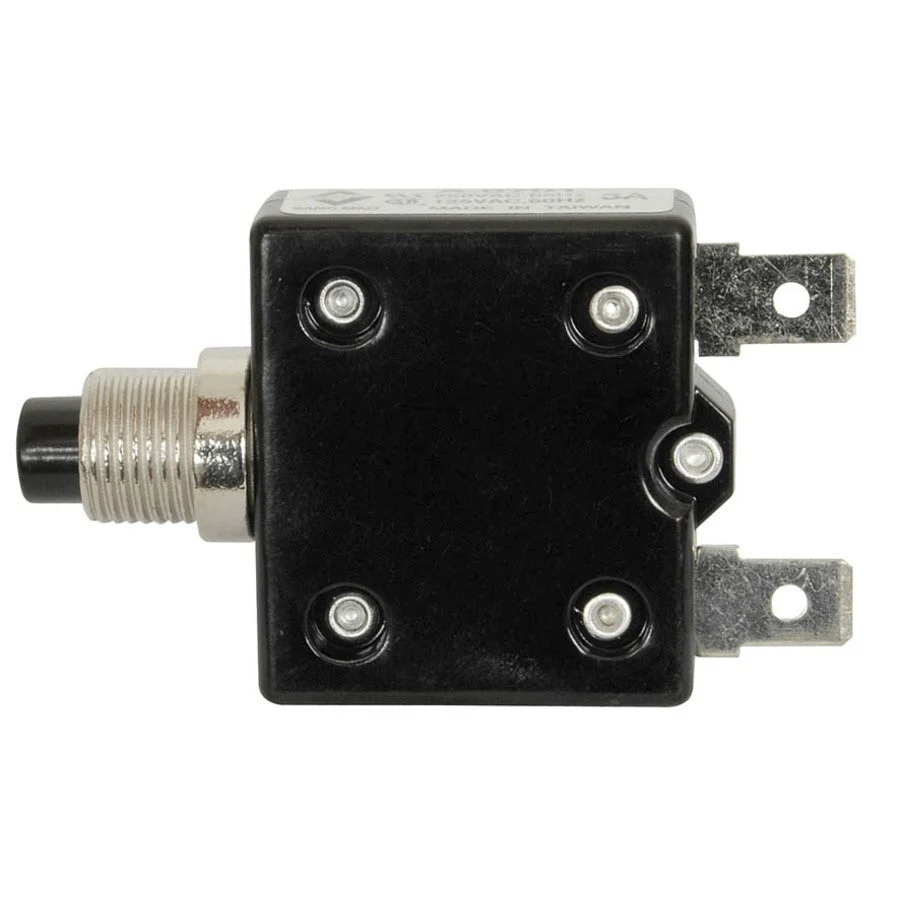

3 Amp Circuit Breaker
Durable multi-purpose circuit breakers for AC or DC circuits. Available in current ratings between 3A and 25A.
Specifications:
• Will hold 100% of rated current indefinitely at 25°C
• Will derate at higher temperatures
• Manual push to reset
• Insulation resistance > 100M ohm
• Mounting hole diameter 12mm
Tripping Times
| % of Rating | Time to Trip |
| 100% | Indefinite |
| 150% | <1 Hour |
| 200% | 4.0 - 30.0s |
| 300% | 2.5 - 11.0s |
| 400% | 1.6 - 7.0s |
| 500% | 0.8 - 2.5s |
| 600% | 0.6 - 1.7s |
Typical derating factors
Rating will change by approximate percentage shown in table
| TEMP°C | 10-25A | 3-5A |
| 60 | 50% | |
| 50 | 60% | |
| 40 | 72% | 45% |
| 30 | 85% | 70% |
| 25 | 100% | 100% |
| 20 | 110% | 120% |
| 10 | 125% | 145% |
| Length | 35.7mm |
| Width | 14.6mm |
| Height | 47.5mm |
| Circuit Breaker Type | Panel mount |
| Circuit Breaker Current | 3A |
| Circuit Breaker AC Voltage | 250V |
| Circuit Breaker DC Voltage | 50V |
| Circuit Breaker Pole Count | 1 pole |
