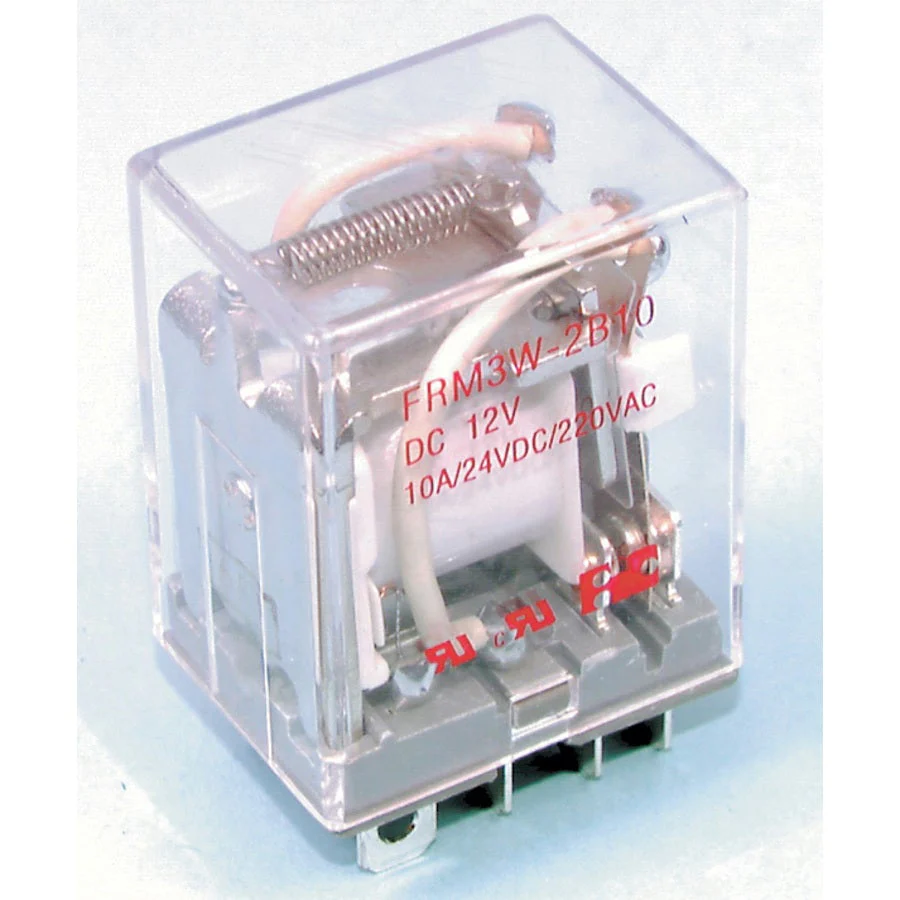

12V DPDT Power Relay - 10A 240VAC/24VDC Contacts
High power DPDT relay suitable for switching loads up to 10A. Designed to suit the SY-4064 DIN rail mounting cradle. Can also be installed with direct connection using 5mm spade lugs.
Specifications:
| DC Contact Voltage | 24V |
| Coil Resistance | 160Ω |
| Coil Current | 75mA |
| Device Type | Cradle Mounting Relay |
| Input | DC |
| Contact format | DPDT |
| AC Contact Voltage | 240V |
| AC Switching Current (Opening) | 10A |
| DC Switching Current (Opening) | 10A |
| Nominal Voltage | 12V |
| Operation Time | 25ms |
| Item connection | Spade Terminals |
| DC Voltage | 12V |
| DC Current Draw | 75mA |
| Mounting Method | Cradle/Socket Mount |
| Length | 20mm |
| Width | 27mm |
| Height | 35mm |
Downloads
- Download Datasheet
High power DPDT relay suitable for switching loads up to 10A. Designed to suit the SY-4064 DIN rail mounting cradle. Can also be installed with direct connection using 5mm spade lugs.
Specifications:
| DC Contact Voltage | 24V |
| Coil Resistance | 160Ω |
| Coil Current | 75mA |
| Device Type | Cradle Mounting Relay |
| Input | DC |
| Contact format | DPDT |
| AC Contact Voltage | 240V |
| AC Switching Current (Opening) | 10A |
| DC Switching Current (Opening) | 10A |
| Nominal Voltage | 12V |
| Operation Time | 25ms |
| Item connection | Spade Terminals |
| DC Voltage | 12V |
| DC Current Draw | 75mA |
| Mounting Method | Cradle/Socket Mount |
| Length | 20mm |
| Width | 27mm |
| Height | 35mm |
Downloads
- Download Datasheet
$6.05
