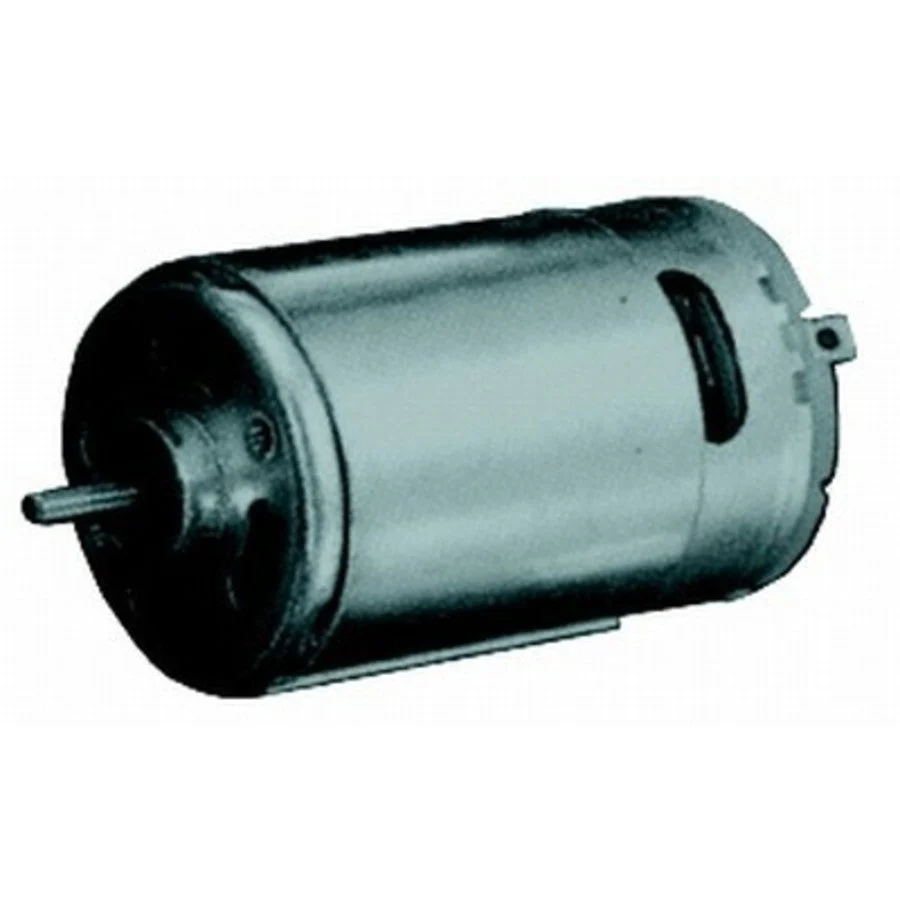

12V 8100 RPM DC Electric Motor
• Torque 180 g-cm
• Voltage: 12V
AT STALL
• Torque (G.CM): 372
• Current (AMP): 5.21
AT MAX POWER
• Output (W): 13.57
• Speed (RPM): 8266
• Torque (G.CM): 160
• Current (AMP): 2.4
DIMENSIONS
• Diameter: 27.66mm
• Total Length: 57mm
• Shaft Length: 13mm
• Shaft dia: 2.3mm
• Mounting thread dia: 2.6mm
• Voltage: 12V
AT STALL
• Torque (G.CM): 372
• Current (AMP): 5.21
AT MAX POWER
• Output (W): 13.57
• Speed (RPM): 8266
• Torque (G.CM): 160
• Current (AMP): 2.4
DIMENSIONS
• Diameter: 27.66mm
• Total Length: 57mm
• Shaft Length: 13mm
• Shaft dia: 2.3mm
• Mounting thread dia: 2.6mm
Specifications:
| Motor Type | High Speed |
| Motor Nominal Voltage | 12V |
| No load current | 0.28A |
| No load RPM | 14500RPM |
| Full load current | 4.3A |
| Full load torque | 520g.cm |
| Max efficiency | 66.1% |
| Max efficiency power | 5.56W |
| Max efficiency RPM | 10950RPM |
| Maximum efficiency torque | 100g.cm |
| Max. efficiency current | 1.5A |
| Shaft diameter | 2.3mm |
| Shaft length | 13mm |
| DC Voltage | 12V |
| Length | 57mm |
| Diameter | 26.66mm |
| Diameter | 2.3mm |
| Length | 13mm |
• Torque 180 g-cm
• Voltage: 12V
AT STALL
• Torque (G.CM): 372
• Current (AMP): 5.21
AT MAX POWER
• Output (W): 13.57
• Speed (RPM): 8266
• Torque (G.CM): 160
• Current (AMP): 2.4
DIMENSIONS
• Diameter: 27.66mm
• Total Length: 57mm
• Shaft Length: 13mm
• Shaft dia: 2.3mm
• Mounting thread dia: 2.6mm
• Voltage: 12V
AT STALL
• Torque (G.CM): 372
• Current (AMP): 5.21
AT MAX POWER
• Output (W): 13.57
• Speed (RPM): 8266
• Torque (G.CM): 160
• Current (AMP): 2.4
DIMENSIONS
• Diameter: 27.66mm
• Total Length: 57mm
• Shaft Length: 13mm
• Shaft dia: 2.3mm
• Mounting thread dia: 2.6mm
Specifications:
| Motor Type | High Speed |
| Motor Nominal Voltage | 12V |
| No load current | 0.28A |
| No load RPM | 14500RPM |
| Full load current | 4.3A |
| Full load torque | 520g.cm |
| Max efficiency | 66.1% |
| Max efficiency power | 5.56W |
| Max efficiency RPM | 10950RPM |
| Maximum efficiency torque | 100g.cm |
| Max. efficiency current | 1.5A |
| Shaft diameter | 2.3mm |
| Shaft length | 13mm |
| DC Voltage | 12V |
| Length | 57mm |
| Diameter | 26.66mm |
| Diameter | 2.3mm |
| Length | 13mm |
$6.86
12V 8100 RPM DC Electric Motor—
$6.86
Description
• Torque 180 g-cm
• Voltage: 12V
AT STALL
• Torque (G.CM): 372
• Current (AMP): 5.21
AT MAX POWER
• Output (W): 13.57
• Speed (RPM): 8266
• Torque (G.CM): 160
• Current (AMP): 2.4
DIMENSIONS
• Diameter: 27.66mm
• Total Length: 57mm
• Shaft Length: 13mm
• Shaft dia: 2.3mm
• Mounting thread dia: 2.6mm
• Voltage: 12V
AT STALL
• Torque (G.CM): 372
• Current (AMP): 5.21
AT MAX POWER
• Output (W): 13.57
• Speed (RPM): 8266
• Torque (G.CM): 160
• Current (AMP): 2.4
DIMENSIONS
• Diameter: 27.66mm
• Total Length: 57mm
• Shaft Length: 13mm
• Shaft dia: 2.3mm
• Mounting thread dia: 2.6mm
Specifications:
| Motor Type | High Speed |
| Motor Nominal Voltage | 12V |
| No load current | 0.28A |
| No load RPM | 14500RPM |
| Full load current | 4.3A |
| Full load torque | 520g.cm |
| Max efficiency | 66.1% |
| Max efficiency power | 5.56W |
| Max efficiency RPM | 10950RPM |
| Maximum efficiency torque | 100g.cm |
| Max. efficiency current | 1.5A |
| Shaft diameter | 2.3mm |
| Shaft length | 13mm |
| DC Voltage | 12V |
| Length | 57mm |
| Diameter | 26.66mm |
| Diameter | 2.3mm |
| Length | 13mm |
