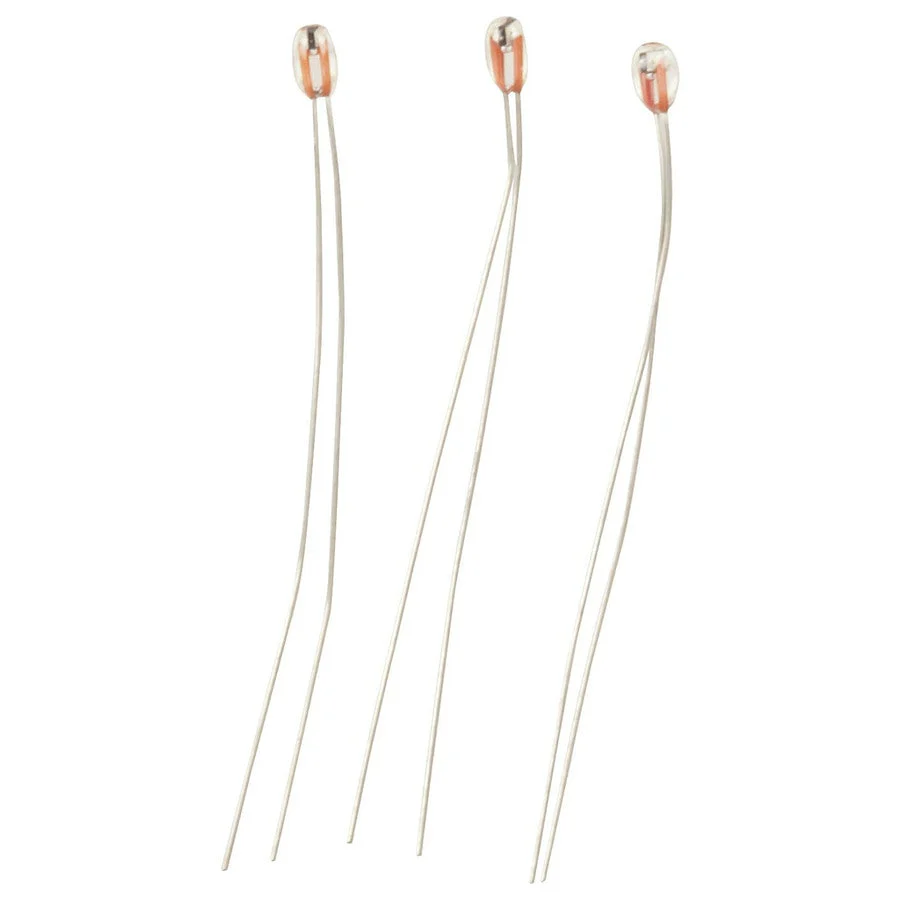

100 kOhm Glass NTC Thermistor
This high temperature NTC thermistor is suitable for operation up to 250 degrees, and is compatible with the hot-end thermistors used in many 3D printers.
Features:
Sealed glass body with small bead for fast response
Specifications:
| Temperature Coefficient | Negative (NTC) |
| Resistance at 25°C ±10% | 100kΩ |
| Thermistor Temperature Range | -40°C-250°C |
| Thermal Dissipation Constant | 1mW/°C |
| Component Type | Thermistor |
| Pack Quantity | 1pc |
| Passive mount type | Through Hole |
| Passive connector type | Solder Legs |
| Passive number of legs | 2 count |
| Nominal Leg Length | 30mm |
| Diameter | 1.7mm |
| Height | 4.1mm |
Downloads
- Download Datasheet
This high temperature NTC thermistor is suitable for operation up to 250 degrees, and is compatible with the hot-end thermistors used in many 3D printers.
Features:
Sealed glass body with small bead for fast response
Specifications:
| Temperature Coefficient | Negative (NTC) |
| Resistance at 25°C ±10% | 100kΩ |
| Thermistor Temperature Range | -40°C-250°C |
| Thermal Dissipation Constant | 1mW/°C |
| Component Type | Thermistor |
| Pack Quantity | 1pc |
| Passive mount type | Through Hole |
| Passive connector type | Solder Legs |
| Passive number of legs | 2 count |
| Nominal Leg Length | 30mm |
| Diameter | 1.7mm |
| Height | 4.1mm |
Downloads
- Download Datasheet
