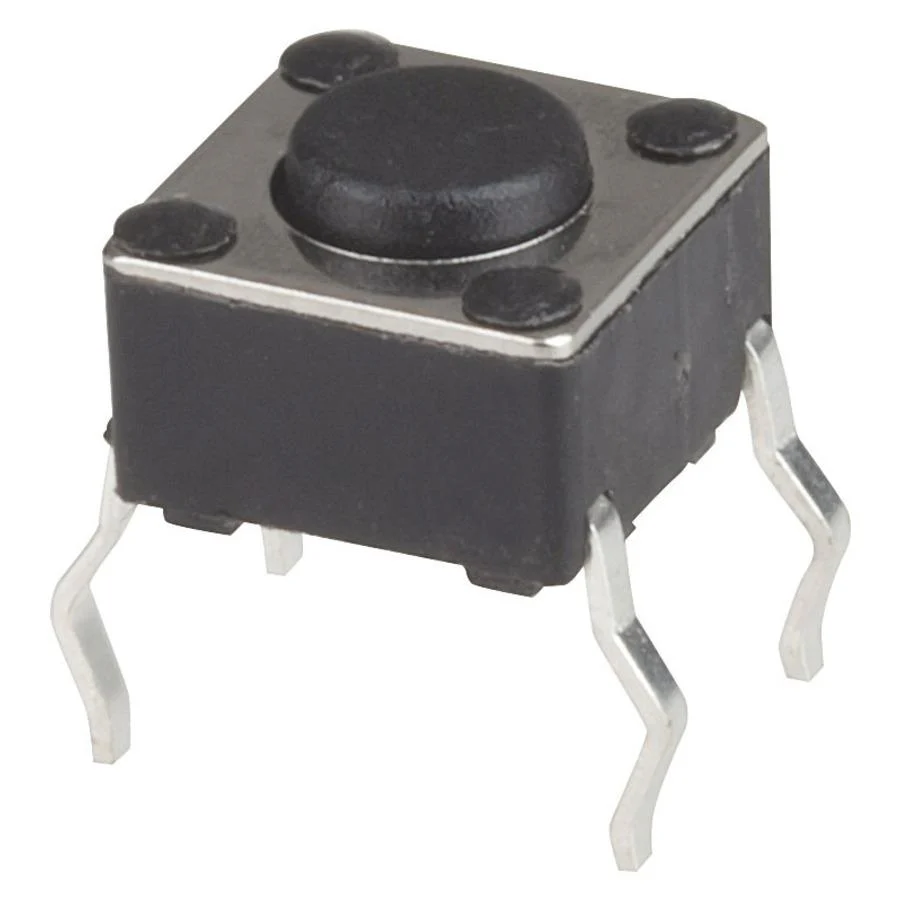

0.7mm SPST Micro Tactile Switch
Normally open SPST micro tactile switch.
Specifications:
| Switch Type | Tactile Pushbutton |
| Pole Throw Type | SPST |
| Switch Function | Single Action Momentary |
| Poles / Contacts | 1 pole |
| Throws / Positions | 1pos |
| Contact Resistance | 100mΩ |
| Insulation Resistance | 100mΩ |
| Switch Connection | PCB Pins |
| Dielectric Strength | 100V |
| Switch Colour Coded | Black |
| Mechanism Material | Plastic |
| Actuator Height | 0.7mm |
| Actuator Diameter | 3.4mm |
| Mounting Method | PCB |
| Pin Spacing Width | 6mm |
| Pin Spacing Depth | 6mm |
| DC Voltage | 12V |
| DC current rating | 50mA |
| Length | 6mm |
| Width | 6mm |
| Height | 3.2mm |
Downloads
- Download Datasheet
